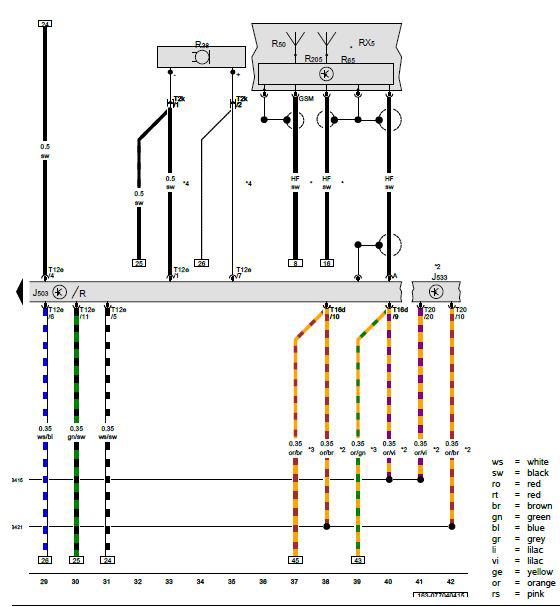

Radio/Navigation Display Unit Control Module, Data Bus On Board Diagnostic Interface, Radio, Roof Antenna, Telephone Microphone, GPS Antenna, Telephone Antenna
J503 Radio/navigation display unit control module
J533 Data bus on board diagnostic interface
R Radio
RX5 Roof antenna
R38 Telephone microphone
R50 GPS Antenna
R65 Telephone antenna
R205 GSM antenna
T2k 2-Pin connector
T12e 12-Pin connector
T16d 16-Pin connector
T20 20-Pin connector
B415 Infotainment CAN Bus high connection 1 (in main wiring harness)
B421 Infotainment CAN bus low connection 1 (in main wiring harness)
* Depending on equipment
*2 only for vehicles with High equipment (AW1)
*3 only for vehicles with Low equipment (AW0)
*4 Only with radio navigation system and voice recognition system
