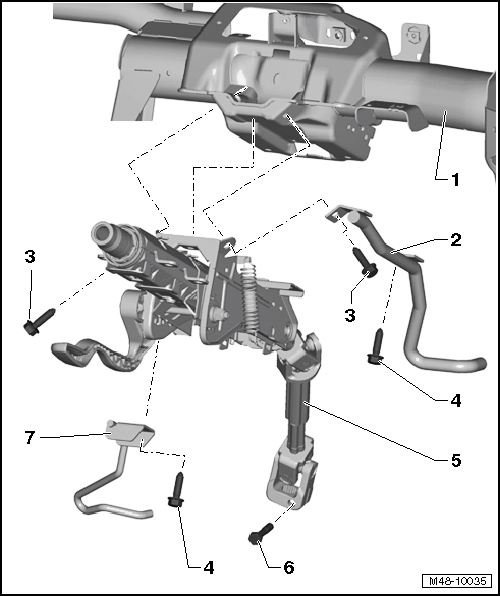

Overview - Steering Column, RHD
NOTE:
Welding and straightening work on supporting or wheel carrying components of the suspension is not permitted.
Always replace self-locking nuts.
Always replace corroded bolts/nuts.
- Subframe with bracket
- Brake Pedal Crash Brace
- For the allocation refer to the parts information.
- Bolt
- Note the tightening sequence. Refer to Installing - For All Vehicles - Tighten The Bolts -1-, -2-, -3- And -4- One After The Other To The Tightening Specification .
- 20 Nm
- Bolt
- Note the tightening sequence. Refer to Installing - For All Vehicles - Tighten The Bolts -1-, -2-, -3- And -4- One After The Other To The Tightening Specification .
- 20 Nm
- Steering Column
- Removing and installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING, RHD .
- Bolt
- 30 Nm
- Always replace after removing
- Clutch Pedal Crash Brace
- For the allocation refer to the parts information.
