Overview -

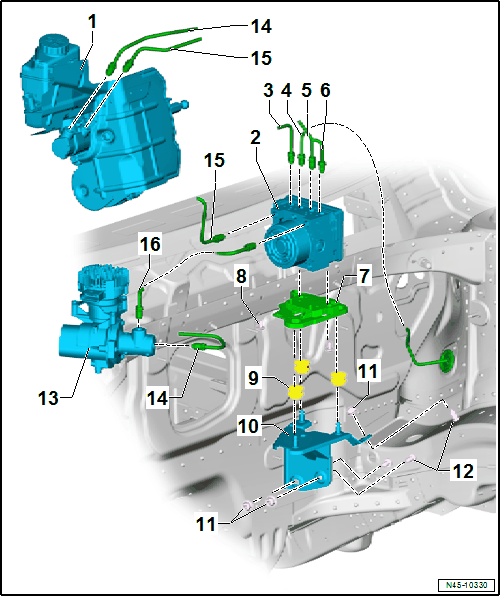

Fig 1: Exploded View Of Control Module And Hydraulic Unit, RHD

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Brake Booster with Master Brake Cylinder
- Overview. Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER, RHD .
- Checking the brake booster. Refer to Vehicle Diagnostic Tester.
- Removing and Installing. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING, RHD VEHICLE .
- Brake master cylinder, removing and installing. Refer to BRAKE MASTER CYLINDER, REMOVING AND INSTALLING, RHD VEHICLES .
ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- Component Location Overview. Refer to ABS REPAIR INSTRUCTIONS .
- Overview. Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT, RHD .
- Removing and Installing. Refer to ABS CONTROL MODULE AND ABS HYDRAULIC UNIT, REMOVING AND INSTALLING, RHD .
- Disconnecting the ABS Control Module -J104- from the ABS Hydraulic Unit -N55-. Refer to CONTROL MODULE, SEPARATING FROM HYDRAULIC UNIT .
- Install the ABS Control Module -J104- on the ABS Hydraulic Unit -N55-. Refer to CONTROL MODULE, ATTACHING TO HYDRAULIC UNIT .
- Connecting the brake lines. Refer to BRAKE LINES, ATTACHING TO HYDRAULIC UNIT, RHD .
Brake Line
- 14 Nm
- To the right rear brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
Brake Line
- 14 Nm
- To the left front brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
Brake Line
- 14 Nm
- To the right front brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
Brake Line
- 14 Nm
- To the left rear brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
Bracket
- After installing, heck for secure fit
Bolt
- 8 Nm
- Quantity: 2
Rubber Bushing
- Quantity: 3
Bracket
Nut
- 20 Nm
- Quantity: 3
Studs
- Attached to the body
Brake System Pressure Reservoir -VX70-
- Component location. Refer to ABS REPAIR INSTRUCTIONS .
- Overview. Refer to OVERVIEW - Brake System Pressure Reservoir -VX70-, RHD .
- Removing and Installing. Refer to Brake System Pressure Reservoir -VX70-, REMOVING AND INSTALLING, RHD .
Brake Line
- 14 Nm
- Brake master cylinder/secondary piston circuit to the Brake System Pressure Reservoir -VX70-
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
Brake Line
- 14 Nm
- Brake master cylinder/primary piston circuit to hydraulic unit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
Brake Line
- 14 Nm
- From the Brake System Pressure Reservoir -VX70- to the ABS Hydraulic Unit -N55-
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
