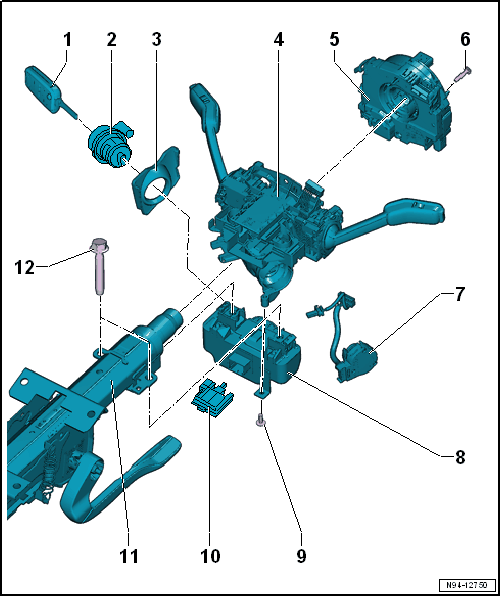

Overview - Steering Column Switch Module Assembly, With Mechanical Ignition Switch
- Ignition Key
- Lock Cylinder
- Removing and installing. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
- Anti-Theft Immobilizer Reader Coil -D2-
- Removing and installing. Refer to Anti-Theft Immobilizer Reader Coil -D2-, REMOVING AND INSTALLING .
- Mount
- With Turn Signal Switch -E2-, Windshield Wiper Intermittent Mode Switch -E22-
- Vehicle equipment version with cruise control system: with Cruise Control Switch -E45-
- Removing and installing. Refer to Turn Signal Switch -E2-, REMOVING AND INSTALLING .
- Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
- Removing and installing. Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .CAUTION:
Risk of damaging coil connector.
- Coil connector with slip ring is not to be turned following removal.
- Bolt
- 1.1 Nm
- Quantity: 3
- Ignition/Starter Switch -D-
- Removing and installing. Refer to IGNITION/STARTER SWITCH, REMOVING AND INSTALLING .
- Steering Lock Housing
- Removing and installing. Refer to STEERING LOCK HOUSING, REMOVING AND INSTALLING .
- Bolt
- 1.1 Nm
- Ignition Switch Key Lock Solenoid -N376-
- Vehicle equipment version with DSG transmission
- Removing and installing. Refer to Ignition Switch Key Lock Solenoid -N376-, REMOVING AND INSTALLING .
- Steering Column
- Bolt
- Quantity: 2
- For steering lock housing (shear bolt)
