Steering Column Switch Module, Removing And Installing, KOSTAL: Removing
-- Position the steering wheel as far back as possible. Use the entire adjustment range of the steering column adjustment for this.
-- Removing the steering wheel refer to STEERING WHEEL, REMOVING AND INSTALLING .
-- Remove the lower steering column trim. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
Risk of destroying electronic components with static discharge.
- Before disconnecting connector, discharge static electricity from your body by touching an electrically grounded vehicle component such as the door latch striker pin.

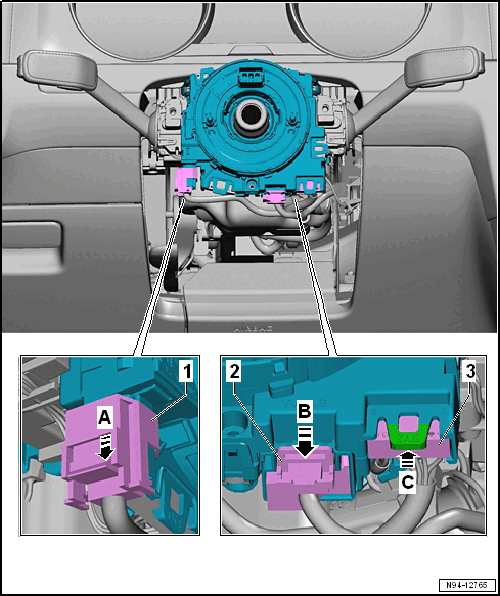

-- Remove the connector lock in the direction of the -arrow A- and press down.
-- Disconnect the connector -1-.
-- Remove the connector lock in the direction of the -arrow B- and press down.
-- Disconnect the connector -2-.
-- Push the connector lock in the direction of the -arrow C- and disconnect the connector -3-.

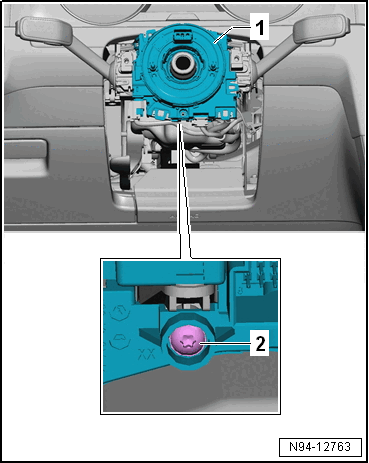

-- Remove the bolt -2- on the bottom.
-- Remove the steering column switch module -1-.
