Overview - Motor Control Module

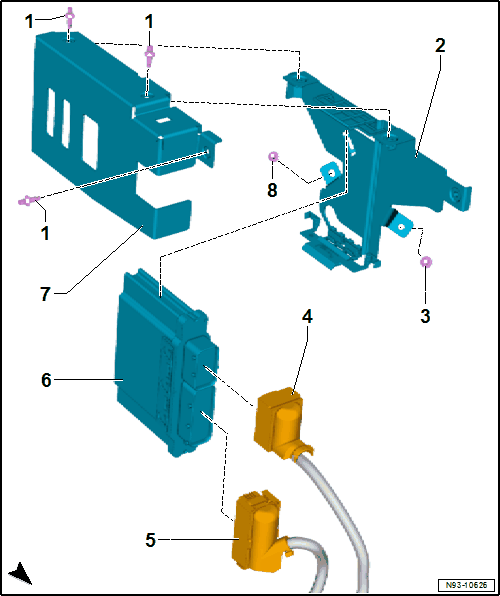

Fig 1: Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolts
- 9 Nm
- Protective housing threaded connection to Engine Control Module -J623- bracket
- Dependent on vehicle equipment
- Quantity: 3
Bracket
- Engine Control Module -J623- -6- bracket
- Removing and installing. Refer to Engine Control Module -J623- BRACKET, REMOVING AND INSTALLING .
Nut
- 9 Nm
Connector
Connector
Engine/Motor Control Module -J623-
- Removing and installing. Refer to Engine/Motor Control Module -J623-, REMOVING AND INSTALLING .
Protective Housing
- Dependent on vehicle equipment
- Removing and installing. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING, WITH PROTECTIVE HOUSING .
Nut
- 9 Nm
