Component Location Overview - Front Control Module

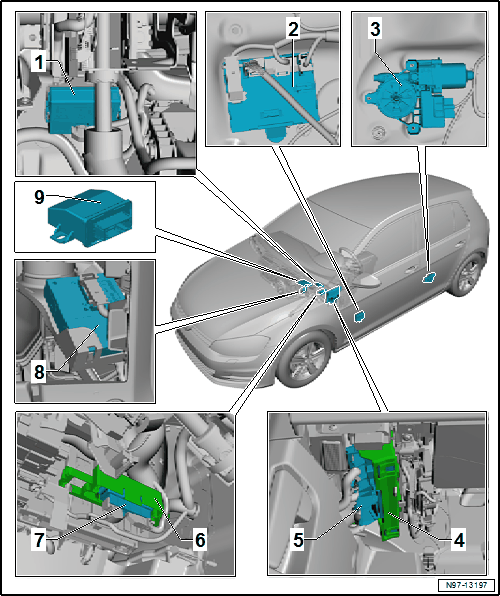

Fig 1: Front Control Module (LHD)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Data Bus On Board Diagnostic Interface -J533-
   • Overview. Refer to OVERVIEW - AUTOMATIC HEAD LAMP RANGE CONTROL .
2. Front Door Control Module
   • Driver Door Control Module -J386-
   • Front Passenger Door Control Module -J387-
   • Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
3. Rear Door Control Module
   • Left Rear Door Control Module -J388-
   • Right Rear Door Control Module -J389-
   • Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
4. Bracket
   • Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
5. Vehicle Electrical System Control Module -J519-
   • Overview. Refer to OVERVIEW - CONTROL MODULES .
6. Bracket
   • Overview. Refer to OVERVIEW - FRONT PARKING AID .
7. Parking Aid Control Module -J446- or Parallel Parking Assistance Control Module -J791-
   • Overview. Refer to OVERVIEW - FRONT PARKING AID .
8. Access/Start System Interface -J965-
   • Overview. Refer to OVERVIEW - ACCESS/START AUTHORIZATION SYSTEM, REST-OF-WORLD .
9. Headlamp Range Control Module -J431- / Cornering Lamp and Headlamp Range Control Module -J745-
   • Overview. Refer to OVERVIEW - AUTOMATIC HEAD LAMP RANGE CONTROL .
