Radiator, Removing And Installing: Removing

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

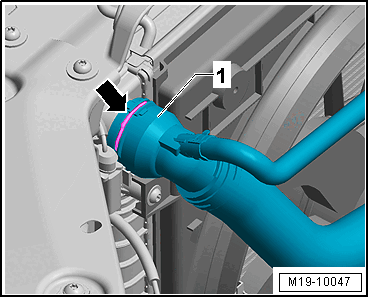

-- Open the clip -arrow-.

Fig 1: Identifying Upper Radiator Coolant Hose Retaining Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the upper radiator coolant hose -1-.

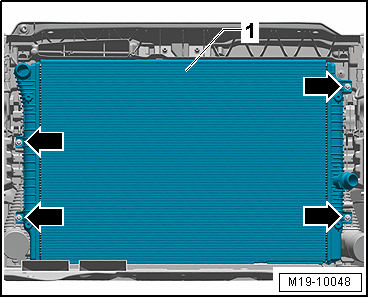

-- Remove radiator bolts -arrows- and remove radiator -1- downward.
