Tightening Specifications

Component Tightening Specification
Screws -2- to bracket 3 Nm

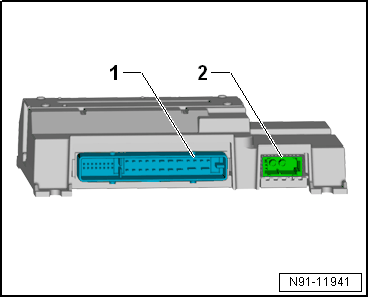

Connectors to Digital Sound System Control Module -J525-

GWWN91-11941Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Multi-pin connector, 38-pin
  2. MOST bus, 2-pin
