Baseplate for Distance Regulation Control Module - J428-, Removing and Installing, Version 2 from MY 2017: Installing

Install in reverse order of removal and note the following:

NOTE:

Replace the quick release.
The stud bolts in the adapter frame are pre-set. If necessary, correct the setting.

Place the control module on a soft and clean surface.
Measure the dimension -a- at the upper stud bolt using the - VAS6335- and correct if necessary.
- Dimension -a- = 40.25 ± 0.5 mm
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Measure the dimension -a- at the lower stud bolt using the - VAS6335- and correct if necessary.
- Dimension -a- = 38.2 ± 0.5 mm
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

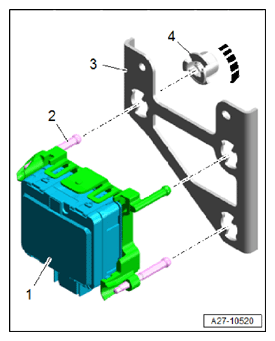

Position the retaining plate -3- onto the distance regulation control module -1-.
Carefully press the new quick release -4- onto the stud bolt -2-.
Turn the quick release clockwise onto the retaining plate to the stop -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
