Baseplate for Distance Regulation Control Module - J428-, Removing and Installing, Version 2 from MY 2017: Removing

Remove the distance regulation control module. Refer to Control Module for Adaptive Cruise Control, Removing and Installing

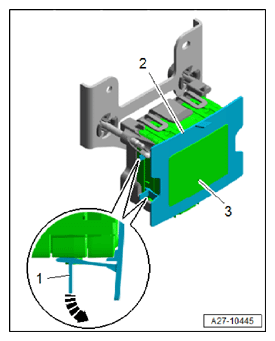

Release the retaining tabs -1- in direction of -arrow-.
Remove the cover -2- from the distance regulation control module -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Release the locking mechanisms -2- in direction of -arrow-.
Remove the distance regulation control module from the stud bolts -1-.
Remove the retaining plate -3- from the Distance Regulation Control Module - J428- -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
