Adjusting Screws, Adjusting

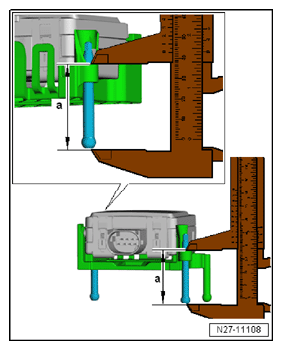

- Using the -VAS6335- measure the adjustment dimension -a- on all adjusting screws and adjust if necessary.
- Dimension -a- = 40.3 mm ± 0.5 mm

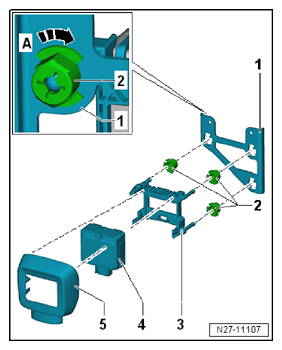

- Install the retaining plate -1- on the quick-release fasteners -2-.
- Push in new quick-release fasteners -2- on the adjusting screws and fixed bearing on the adapter frame -3-.
- Turn the quick-release fasteners -2- on the back of the retaining plate -1- in the direction of the -arrow A- until stop.
- Install the Distance Regulation Control Module - J428-. Refer to Control Module for Adaptive Cruise Control, Removing and Installing
- Calibrate the adaptive cruise control. Refer to Adaptive Cruise Control, Calibrating Note
