Adjusting Screws, Adjusting
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

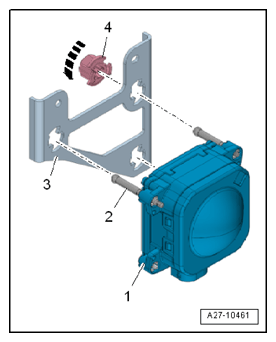

Place the Distance Regulation Control Module - J428- on a soft and clean mat.
Using the Digital Caliper -VAS6335- measure the adjustment dimension -a- on all adjusting screws and adjust if necessary.
Dimension -a- = 44.3 mm.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
