Distance Regulation Control Module - J428- Clips, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Remove the adjusting screw -1- using a suitable tool -2-.

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

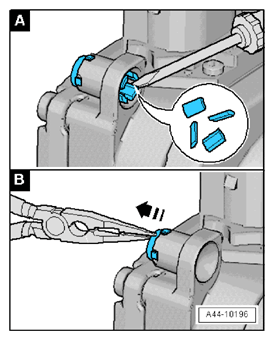

• Place a screwdriver -A- between the hook and the housing.
• Bend every hook to the center point, one after the other, with the screwdriver until it audibly breaks off.
• To prevent the broken hook from getting caught on the housing, remove it from the inside of the clip using needle nose pliers -B-.

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

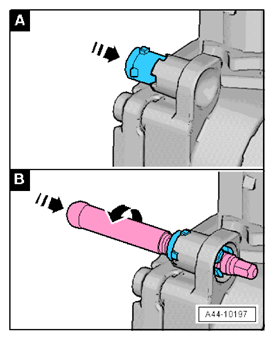

• Insert the new clip -A- into the hole in the housing and press on by hand until it clicks into place -arrow-. The tabs on the clip must sit correctly in the recesses.
• Install the adjusting screw -B- -arrows-. The adjusting screw must be parallel to the hole and correctly aligned to the clip.
• Adjust the adjusting screw .
• Repeat this on the other clips.
• Install the retaining plate for Distance Regulation Control Module - J428- .
