Vehicle Electrical System Control Module -J519- Bracket, Removing And Installing: Removing
-- With the ignition switched off, disconnect the Ground (GND) cable from the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the instrument panel. Refer to.

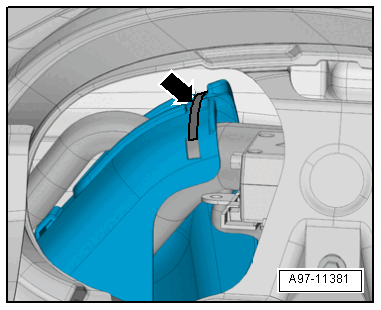

-- Cut the cable tie -arrow-.
-- Disengage fuse panel C and press aside. Refer to RELAY AND FUSE PANELS BEHIND INSTRUMENT PANEL, REMOVING AND INSTALLING .
-- Disconnect the Front Parking Aid Warning Buzzer -H22- connector. Refer to FRONT PARKING AID WARNING BUZZER -H22-, REMOVING AND INSTALLING .
-- Disconnect the Vehicle Electrical System Control Module -J519- connector. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .
-- Disconnect the Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module - J791- connector. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
-- Remove the diagnostic connector, to do this release the locking mechanism on the bracket and remove the bracket outward.

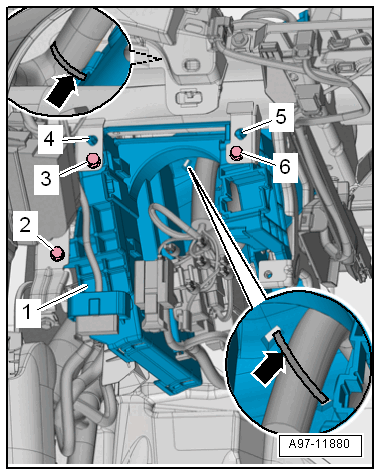

-- Remove the bolts -2, 3 and 6-.
-- Push the bracket -1- forward from the central tube until the centering pins -4 and 5- are disengaged.
-- Cut the cable ties -arrows-.
-- Free up the wiring harness on the mount.
-- Remove the bracket to the vehicle interior.
