Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine Control Module, Instrument Cluster: Notes

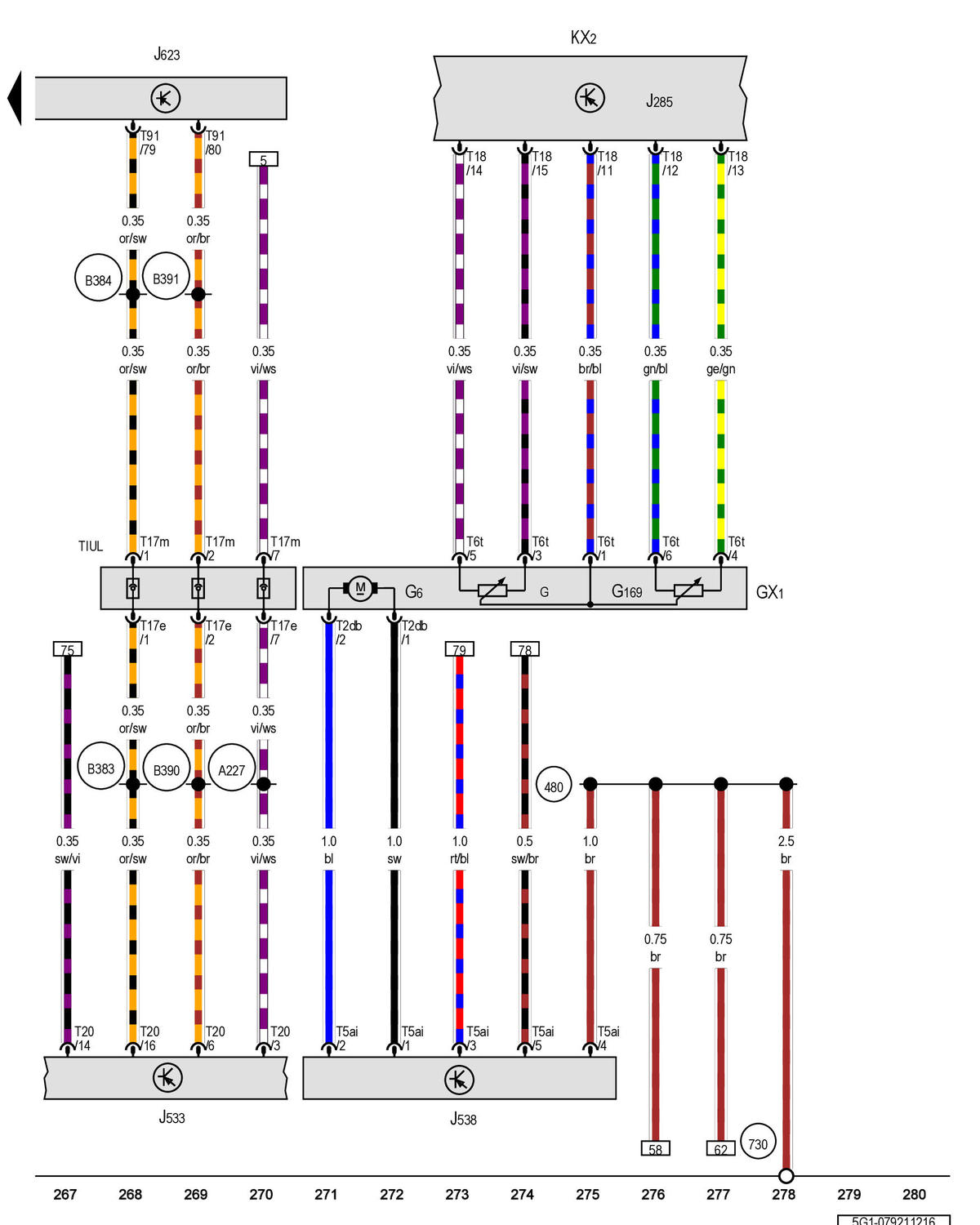

GWW5G1-079211216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
