Left And Right Front Bass Speaker -R21- / -R23-, Removing And Installing: Installing
NOTE:
Secure the speaker when installing with special pop rivets (refer to the appropriate parts information).

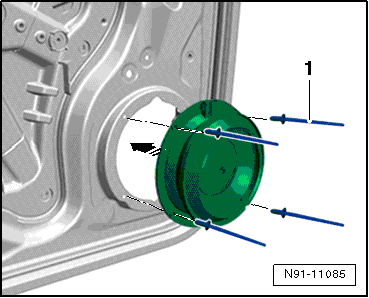

-- Install the speaker in direction of -arrow- with four pop rivets -1-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Connect the connector to the speaker.
Install in reverse order of removal.
