Windshield Wiper And Washer System, Checking And Adjusting Spray Nozzles

Special Tools And Workshop Equipment Required

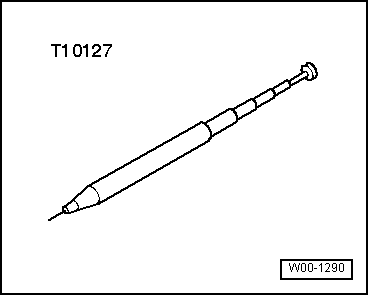

Windshield Wash Aiming Tool:T10127 equipped with Replacement Tips 3125/ 5A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

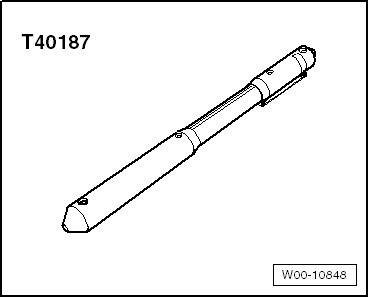

Washer Jet Setting Tool:T40187

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

In cases where contamination in spray jet results in an uneven spray pattern, remove the spray jet and rinse it with water in the opposite direction of the spray flow. Subsequently blowing through in the opposite direction of the spray flow with compressed air is permitted. Do not use any other objects to clean the spray nozzles.

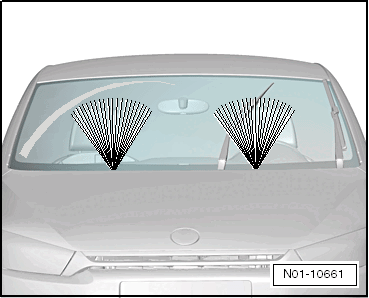

Windshield Spray Nozzle Adjustment:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The washer nozzles are preset. Small height adjustments can be made.

-- If both spray fields are not at same height, adjust spray direction upward or downward as follows:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

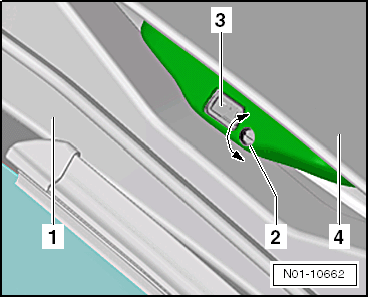

1 -Cowl Panel Plate in Front of Windshield

2 -Adjuster TORX^® size 8

3 -Spray Nozzle

4 -Hood

-- Adjust the spray nozzle -3- by turning at the adjuster -2- with a TORX^® screwdriver.

"Clockwise" lower adjustment.
"Counter-clockwise" higher adjustment.
