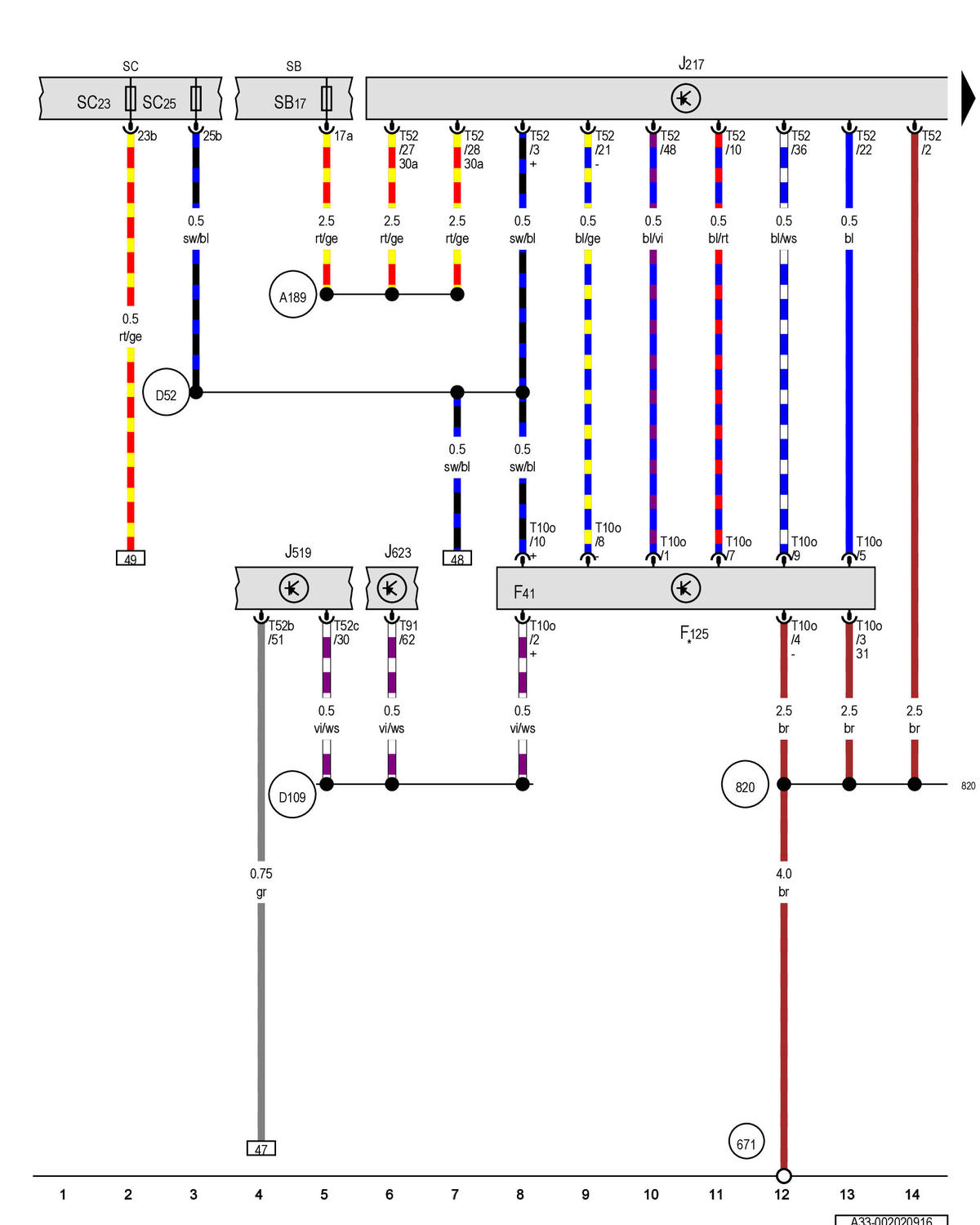

Back-Up Switch, MULTIFUNCTION Transmission Range Switch, Transmission Control Module: Notes

GWWA33-002020916Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
