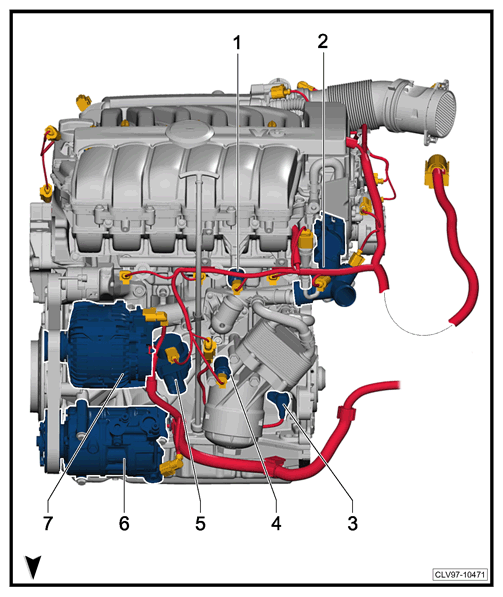

3.6L FSI, CDVB Left
- 1
- Knock Sensor 2 -G66-
- 2
- Fuel Pressure Regulator Valve -N276-
- 3
- Engine Speed Sensor -G28-
- 4
- Oil Pressure Switch -F1-
- 5
- Coolant Recirculation Pump -V50-
- 6
- A/C Compressor Regulator Valve -N280-
- 6
- Compressor Magnetic Clutch -N421-
- 7
- Generator With Voltage Regulator -CX1-
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
