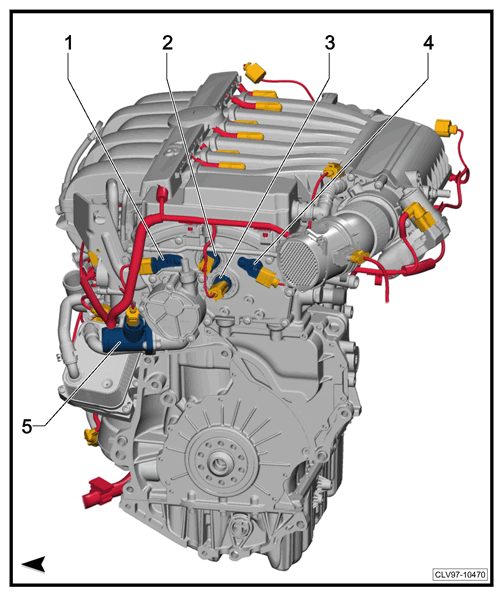

3.6L FSI, CDVB Rear

  1. Camshaft Position Sensor -G40-
  2. Camshaft Adjustment Valve 1 -N205-
  3. Exhaust Camshaft Adjustment Valve 1 -N318-
  4. Camshaft Position Sensor 2 -G163-
  5. Engine Coolant Temperature Sensor -G62-
    G12751095Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
