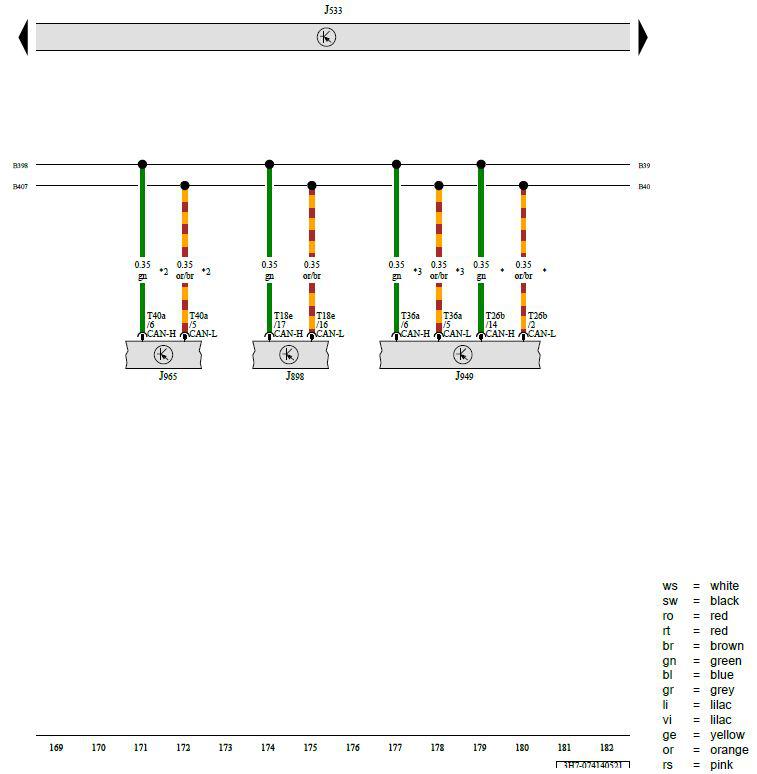

Data Bus on Board Diagnostic Interface, Windshield Projection Head Up Display Control Module, Control Module for Emergency Call Module and Communication Unit, Access/Start System Interface
J533 - Data Bus on Board Diagnostic Interface
J898 - Windshield Projection Head Up Display Control Module
J949 - Control Module for Emergency Call Module and Communication Unit
J965 - Access/Start System Interface
T18e - 18-Pin Connector, Naturally Cloudy
T26b - 26-Pin Connector, Black
T36a - 36-Pin Connector, Black
T40a - 40-Pin Connector, Black
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
* - Through July 2019
*2 - From November 2017
*3 - From July 2019
