Overview - Steering Column Switch Module With Mechanical Ignition Switch

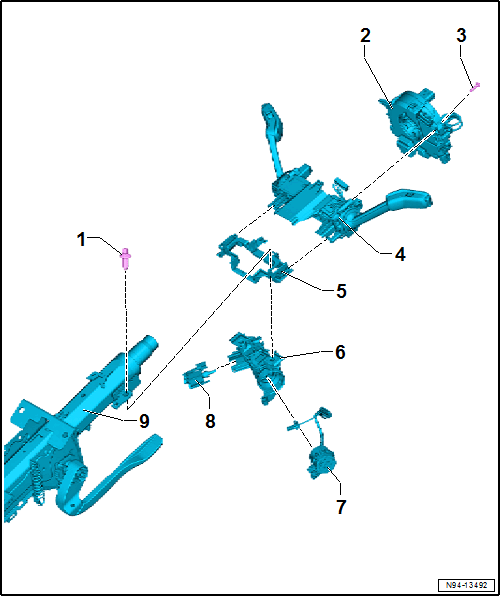

Fig 1: Exploded View Of Steering Column Switch Module With Mechanical Ignition Switch

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • For steering lock housing (shear bolt)
   • Quantity: 2
2. Steering Column Electronics Control Module -J527-
   • With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
   • Removing and installing. Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
3. Bolt
   • 1 Nm
   • Quantity: 3
4. Steering Column Combination Switch
   • With Turn Signal Switch -E2- / Windshield Wiper Intermittent Mode Switch -E22-
   • Vehicle equipment version with cruise control system: with Cruise Control Switch -E45-
   • Removing and installing. Refer to Turn Signal Switch -E2-, REMOVING AND INSTALLING .
5. Base Carrier
   • For the steering column combination switch
   • Removing and installing. Refer to STEERING COLUMN COMBINATION SWITCH BASE CARRIER, REMOVING AND INSTALLING, MECHANICAL IGNITION LOCK .
6. Steering Lock Housing
   • With lock cylinder and Anti-Theft Immobilizer Reader Coil -D2-
   • Steering Lock Housing, Removing and installing. Refer to STEERING LOCK HOUSING, REMOVING AND INSTALLING .
   • Lock Cylinder, Removing and installing. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
   • Anti-Theft Immobilizer Reader Coil -D2-, Removing and installing. Refer to Anti-Theft Immobilizer Reader Coil -D2-, REMOVING AND INSTALLING, MECHANICAL IGNITION LOCK .
7. Ignition/Starter Switch -D-
   • Removing and installing. Refer to IGNITION/STARTER SWITCH, REMOVING AND INSTALLING .
8. Ignition Switch Key Lock Solenoid -N376-
   • Only on vehicles with a DSG^® transmission/automatic transmission
   • Removing and installing. Refer to Ignition Switch Key Lock Solenoid -N376-, REMOVING AND INSTALLING .
9. Steering Column
