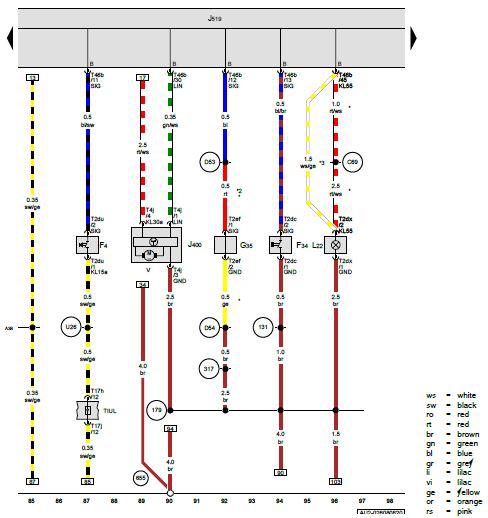

Back-Up Lamp Switch, Brake Fluid Level Warning Switch, Right Front Brake Pad Wear Sensor, Wiper Motor Control Module, Vehicle Electrical System Control Module, Left Front Fog Lamp Bulb
F4 - Back-Up Lamp Switch
F34 - Brake Fluid Level Warning Switch
G35 - Right Front Brake Pad Wear Sensor
J400 - Wiper Motor Control Module
J519 - Vehicle Electrical System Control Module
L22 - Left Front Fog Lamp Bulb
T2dc - 2-Pin Connector
T2du - 2-Pin Connector
T2dx - 2-Pin Connector
T2ef - 2-Pin Connector
T4j - 4-Pin Connector
T17h - 17-Pin Connector, Brown
T17j - 17-Pin Connector, Brown
T46b - 46-Pin Connector
TIUL - Coupling Point in Interior, Bottom Left
V - Windshield Wiper Motor
131 - Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)
179 - Ground Connection (in Left Headlamp Wiring Harness)
317 - Ground Connection 7 (in Engine/Motor Compartment Wiring Harness)
655 - Ground Connection on Left Headlamp
A38 - Positive Connection 2 (15a) (in Instrument Panel Wiring Harness)
C69 - Fog Lamp Connection (in Left Front Wiring Harness)
D53 - Right Brake Wear Indicator Connection (in Engine/Motor Compartment Wiring Harness)
D54 - Right Brake Wear Indicator Connection (in Engine/Motor Compartment Wiring Harness)
U26 - Connection 15 (in Transmission Switch Wiring Harness)
* - The Color of the Wires Depends on Vehicle Equipment
*2 - Different Wire Color Possible
*3 - Depending on Equipment
