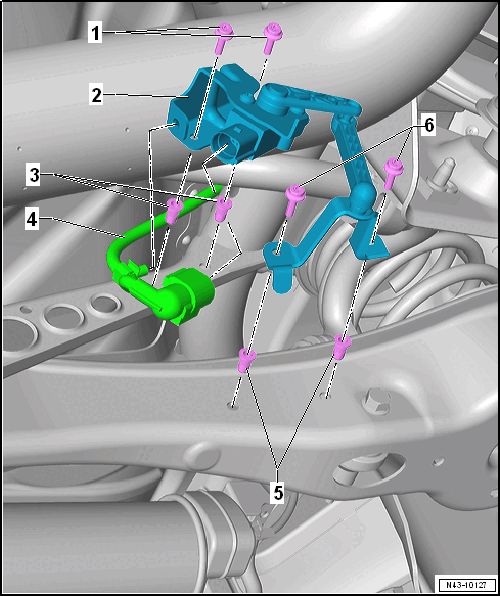

Overview - Rear Level Control System Sensor, Multi-Link Suspension
NOTE:
A replacement level control system sensor only comes complete with the coupling rod and the upper and lower retaining plate.
- Bolt
- 5 Nm
- Rear Level Control System Sensor --
- Complete with attachments
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to LEFT/RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
- Perform a basic setting. Refer to Vehicle Diagnostic Tester.
- Internally Threaded Pop Rivet
- Connector
- Internally Threaded Pop Rivet
- Bolt
- 5 Nm
