Transmission Control Module, Removing And Installing: Removing

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

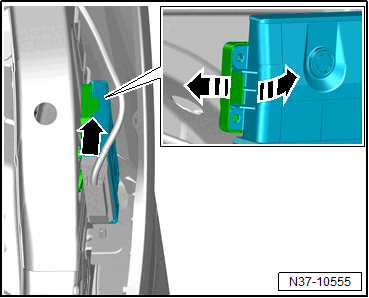

-- Push the tabs in direction of -arrow- to the left and remove the control module from the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the connector and remove it from the control module.
