Overview - Window Regulator

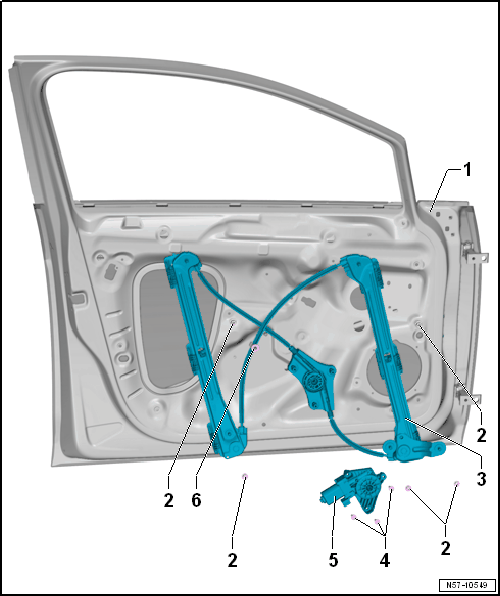

Fig 1: Exploded View Of Window Regulator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Door
Nut
- 6 Nm
- Quantity: 5
Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 3
Driver Window Regulator Motor -V147- /Front Passenger Window Regulator Motor -V148-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Clip
