Overview - Windshield

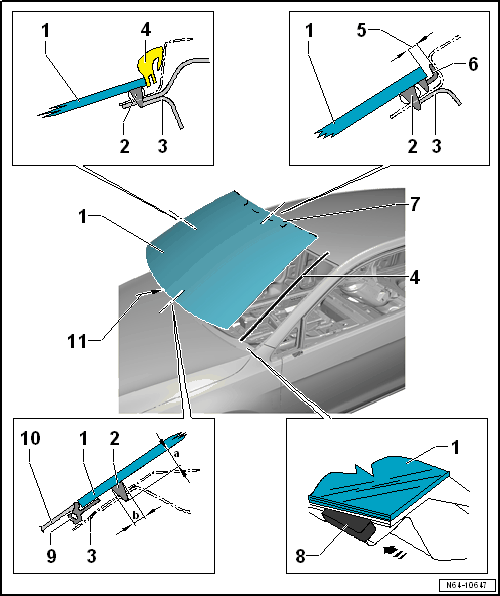

Fig 1: Exploded View Of Windshield

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Windshield
- Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
PUR Adhesive Sealant
- Bead diameter: Width -b- = 7 mm Height -a- = 10 mm (including the precoating, residual material on the window and window flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
Body Flange
- Paint damage, repairing
Drip Rail
Gap Dimension
- Must be even
Seal
Communication Window
- Only with tinted glass
Window Adjuster
- :443 845 631 A
- Remove two hours after installing the windshield
Retainer
- Windshield component
Plenum Chamber Cover
- May only be pulled out of the retainer by hand.
- Removing and Installing. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
Connector
- For the windshield defogger.
