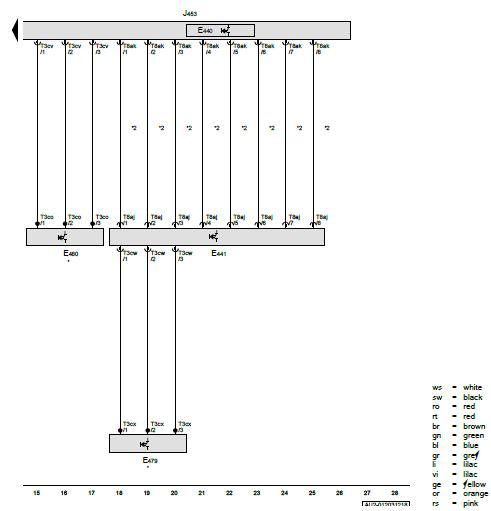

Left Multifunction Buttons on Steering Wheel, Right Multifunction Buttons on Steering Wheel, Tiptronic Upshift Button, Tiptronic Downshift Button, Multifunction Steering Wheel Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E440  Left Multifunction Buttons on Steering Wheel

E441  Right Multifunction Buttons on Steering Wheel

E479  Tiptronic Upshift Button

E480  Tiptronic Downshift Button

J453  Multifunction Steering Wheel Control Module

T3co  3-Pin Connector

T3cv  3-Pin Connector

T3cw  3-Pin Connector

T3cx  3-Pin Connector

T8aj  8-Pin Connector

T8ak  8-Pin Connector

*  Depending on Equipment

*2  Adapter Cable
