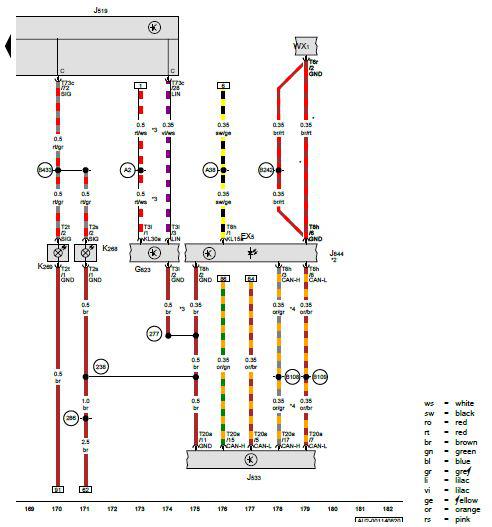

Interior Rearview Mirror, Humidity, Rain and Light Recognition Sensor, Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface, Left Front Footwell Lamp, Right Front Footwell Lamp, Front Interior Lamp
EX5 Interior Rearview Mirror
G823 Humidity, Rain and Light Recognition Sensor
J519 Vehicle Electrical System Control Module
J533 Data Bus on Board Diagnostic Interface
J844 Automatic High Beam Assist Control Module
K268 Left Front Footwell Lamp
K269 Right Front Footwell Lamp
T2s 2-Pin Connector
T2t 2-Pin Connector
T3l 3-Pin Connector
T6r 6-Pin Connector
T8h 8-Pin Connector
T20a 20-Pin Connector
T73c 73-Pin Connector
WX1 Front Interior Lamp
238 Ground Connection 1 (in Interior Wiring Harness)
277 Ground Connection 3 (in Interior Wiring Harness)
286 Ground Connection 8 (in Interior Wiring Harness)
A2 Positive Connection (15) (in Instrument Panel Wiring Harness)
A38 Positive Connection 2 (15a) (in Instrument Panel Wiring Harness)
B108 CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109 CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B242 Interior Rearview Mirror Negative Connection (in Interior Wiring Harness)
B433 Footwell Illumination Connection (in Main Wiring Harness)
* Depending on Equipment
*2 For Vehicles with High Beam Assist
*3 Diameter Depends on Equipment
*4 The Color of the Wires Depends on Vehicle Equipment
