Front Information Display Control Head Control Module -J685-, Removing And Installing: Removing

The Front Information Display Control Head -J685- will be called information display control head in the information that follows.

-- Remove the information electronics cover. Refer to INFORMATION ELECTRONICS COVER, REMOVING AND INSTALLING .

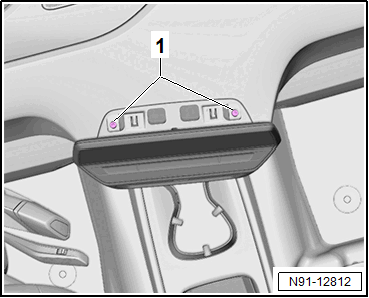

-- Remove the bolts -1- and the information display control head.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors.
