Internet Access Control Module J666, Removing And Installing: Removing

-- Loosen the headliner and place it on the headrests. Refer to HEADLINER, REMOVING AND INSTALLING .

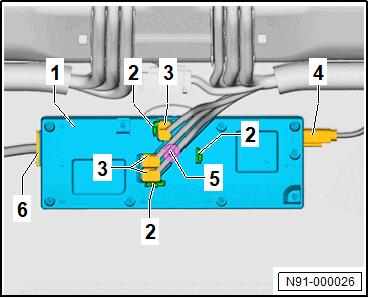

-- Disconnect the connectors -3, 4 and 6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolt -5-.

-- Release the hooks -2- and remove the Internet Access Control Module -1-.
