Overview - Motor Control Module

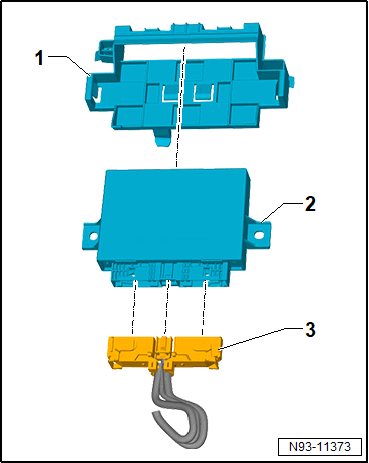

Fig 1: Exploded View Of Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine/Motor Control Module Bracket
- Refer to Engine/Motor Control Module J623 Bracket, Removing and Installing .
Engine/Motor Control Module -J623-
- Refer to Engine/Motor Control Module J623, Removing and Installing .
Connector
