Rain/Light Recognition Sensor, Servicing, VALEO

-- Remove the Rain/Light Recognition Sensor -G397-. Refer to RAIN/LIGHT RECOGNITION SENSOR, REMOVING AND INSTALLING .

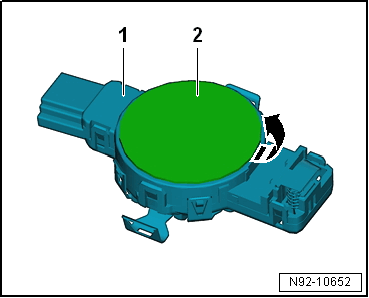

-- Carefully remove the sensor film -2- or remaining sensor film carefully from the Rain/Light Recognition Sensor -G397- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

The Rain/Light Recognition Sensor -G397- surface must be completely free of any remaining film.

-- Clean the sensor surfaces with cleaning solution D 009 401 04.

-- Remove the silicone paper -3- from the sensor film -2-.

Fig 1: Identifying Silicone Paper From Sensor Foil

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The transparent protective film -1- serves as an assembly aid and remains on the sensor film.

-- Place the sensor film -2- on the Rain/Light Recognition Sensor -G397- -3- using the transparent protective film -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the sensor film through the protective film -1- free of bubbles on the Rain/Light Recognition Sensor -G397- -2-.

Fig 2: Pressing Sensor Foil Onto Rain Sensor Without Bubbles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clear protective film -1- from the sensor film -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Rain/Light Recognition Sensor -G397-. Refer to RAIN/LIGHT RECOGNITION SENSOR, REMOVING AND INSTALLING .
