Overview - Selector Mechanism

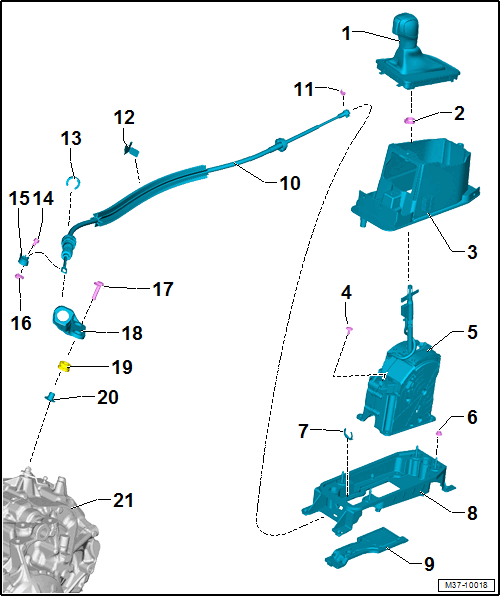

Fig 1: Exploded View Of Selector Mechanism

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Handle with Shift Cover
- Only unclip the cover for the emergency release. Refer to EMERGENCY RELEASE FROM P .
- Removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Clamp
- Replace after removing
Insulation
Bolt
- 8 Nm
- Quantity: 4
Selector Mechanism
- With integrated Selector Lever Sensor System Control Module -J587- with Selector Lever -E313-, Tiptronic Switch -F189-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110-.
- Removing and installing. Refer to SHIFT MECHANISM, REMOVING AND INSTALLING .
Nut
- 8 Nm
- For the selector mechanism to the selector housing
- Quantity: 4
Clip
- For the selector lever cable to the selector housing
Shifter Housing
- Replace after removing
- Can only be replaced together with the selector mechanism
Selector Housing Cover
- Replace after removing
Selector Lever Cable
- Do not grease the selector lever cable.
- Checking and Adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
- Removing and installing. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING .
Lock Washer
- Replace after removing
- For selector lever cable on the selector mechanism
Clip
- For attaching to the heat shield
Lock Washer
- Replace after removing
Selector Lever Cable Adjusting Bolt
- 12 Nm
Adjusting Mechanism
- Selector Lever Cable, Checking and Adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING
Lock Washer
- Replace after removing
Bolt
- 20 Nm
- Quantity: 2
Cable Bracket
Grommet
- Clipped in the cable bracket
Spacer
- Installation position: the larger diameter points to the transmission
Transmission
