Engine, Removing

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Engine and Gearbox Jack:VAS6931
Engine/Gearbox Jack - Engine Support:T10359A
Engine/Gearbox Jack - Pin:T10359/2
Engine/Gearbox Jack - Adapter:T10359/3
Securing element from the Transmission Support:3282
Pry Lever:80-200
Shop Crane - Drip Tray:VAS6208
Hose Clamps - Up To 25mm:3094
Protective Eyewear
Safety Gloves
Step Ladder

NOTE:

The engine with transmission is removed downward. For this reason it is necessary to remove the subframe with the steering gear.

Procedure

CAUTION:

The cooling system is under pressure when the engine is warm. Risk of scalding due to hot steam and hot coolant.

Scalding the skin and other parts of the body is possible.

Wear safety gloves.
Wear protective eyewear.
Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.

-- Open the coolant reservoir cap -arrow-.

Fig 1: Identifying Coolant Reservoir Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front left and right wheel housing liners. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Remove the subframe with the steering gear. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .

-- Disconnect the left drive axle from the flange shaft and tie upward. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the right drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

NOTE:

Be careful not to damage the protective coating on the drive axle.

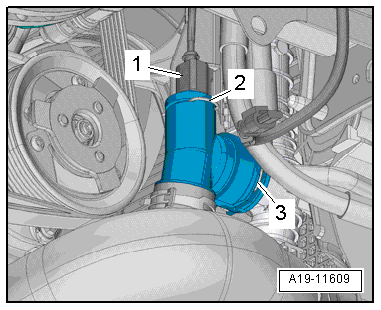

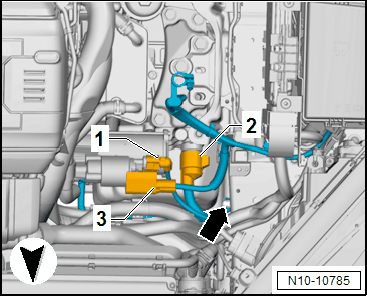

-- Disconnect the connector -1-.

Fig 2: Component Location Engine Coolant Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the :VAS6208 underneath.

-- Lift the clamp -3- and remove the lower right coolant hose from the radiator and drain the coolant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

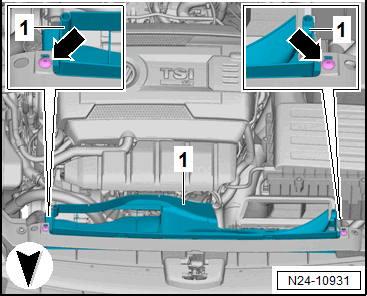

-- Remove the bolt -arrow- on the left and right.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip and remove the lower section -1- of the air duct.

-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the battery tray -1-. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the vacuum hose -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the release button on the vacuum hose -1-, remove the hose from the vacuum pump.

Vehicles without Parking Heater:

Fig 3: Identifying Heater Core Hoses

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the clips -arrows- and remove the coolant hoses from the heater core for the heater.

-- Hold the coolant hoses downward and allow the coolant to drain.

Vehicles with Parking Heater:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

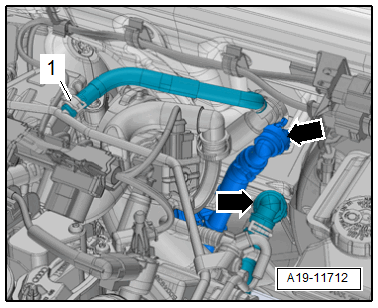

-- Loosen the hose clamp -1-, lift the clamps -arrows- and remove the coolant hoses.

Continuation for All Vehicles:

Fig 4: Heated Oxygen Sensors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

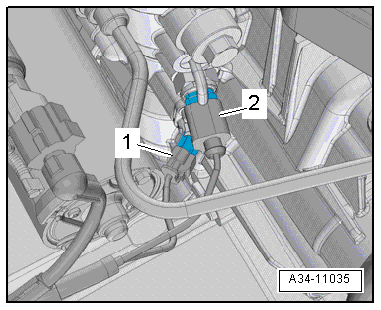

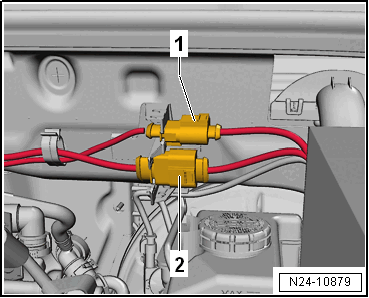

-- Remove the connectors -1 and 2- from the bracket and disconnect them. Then free up the wires.

Vehicles with a Particulate Filter:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -3- and loosen the control line for the Exhaust Pressure Sensor 1 -G450- -4- from the exhaust pipe.

-- Loosen the hose clamps -arrows- and remove the pressure hoses -1 and 2- from the control line for the Exhaust Pressure Sensor 1 -G450-.

Continuation for All Vehicles:

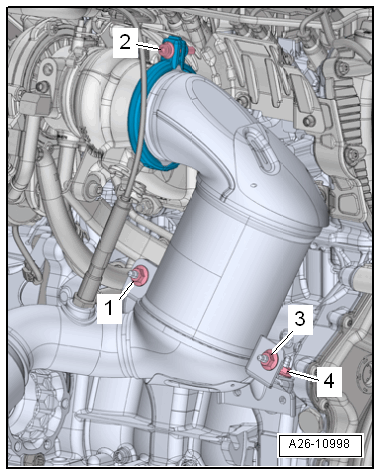

Fig 5: Catalytic Converter - Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and the screw-type clamp.

-- Remove the nuts -1 and 3- and tie up the catalytic converter to the rear. (Shown with the engine removed.)

Fig 6: Identifying Expansion Tank

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

The fuel system is under pressure.

Risk of injury from fuel spraying out.

Wear protective eyewear.
Wear safety gloves.
Reduce the pressure: place clean cloths around the connection point and carefully open the connection point.

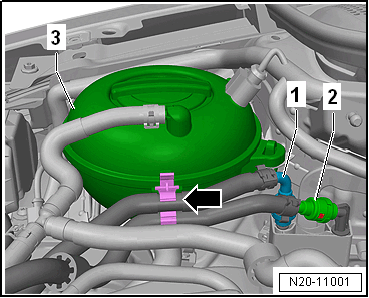

-- Disconnect the hose couplings -1 and 2-. Refer to CONNECTOR COUPLINGS, DISCONNECTING . Loosen the hose clamp from the expansion tank -3-.

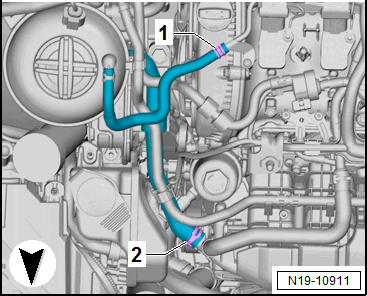

-- Loosen the hose clamps -1 and 2- and remove the coolant hoses.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

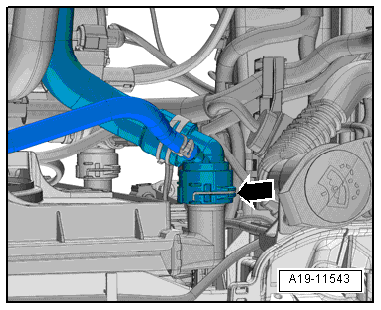

-- Lift the clamp -arrow- and remove the left upper coolant hose from the radiator.

Fig 7: Identifying Clamp And Upper Left Coolant Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Use the :80-200 for removing the spiral clips in the following steps.

Fig 8: Free Electrical Wiring Up To Generator Using 80-200

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

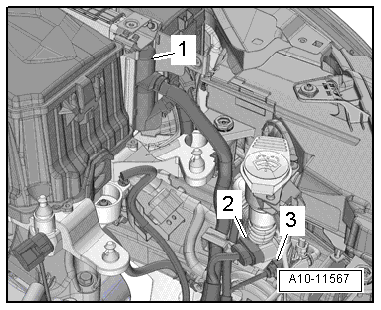

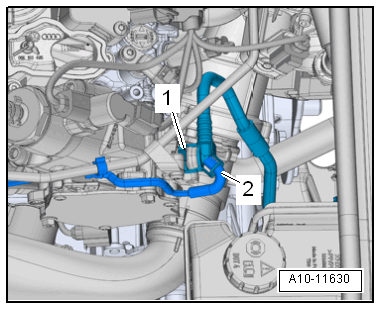

-- Disconnect the connector -1- from the Engine Control Module -J623-. Refer to ENGINE CONTROL MODULE -J623-, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connectors -2 and 3- from the bracket and disconnect.

-- Free up the wires.

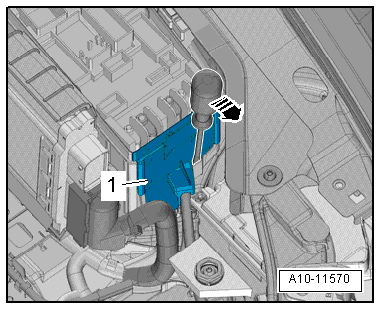

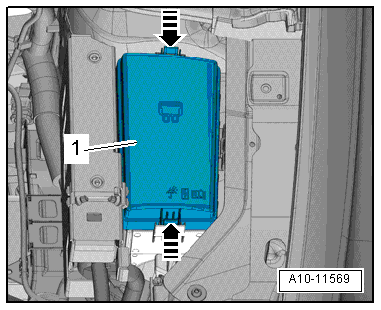

-- Release the retainers in direction of -arrows- and remove the cover -1- from the engine compartment E-box.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the retainers with a screwdriver in direction of -arrow-, remove the cover -1- for the engine compartment E-box upward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

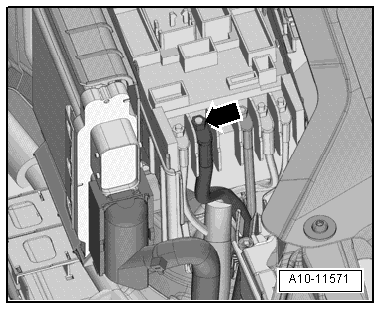

-- Remove the nut -arrow-, disconnect and free up the wires.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with Manual Transmission:

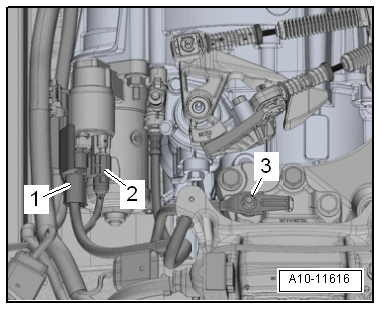

Fig 9: Identifying Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Push the B+ terminal protector -1- back and disconnect the B+ wire from the starter solenoid switch.

-- Remove the nut -3- and remove the ground wire.

NOTE:

Depending on the version the ground cable is attached to the starter bolt.

-- Disconnect the left front connectors from the transmission:

Fig 10: Identifying Park/Neutral Position Switch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

For the Transmission Neutral Position Sensor -G701-
For the Back-Up Lamp Switch -F4-

-- Remove the gearshift and the selector lever cable from the transmission, remove the cable bracket and move it to the side with the cables. Refer to the appropriate service information (May NOT be Applicable With U.S. Tiguan) .

-- Clamp the hose/line assembly -A- to the slave cylinder with the :3094 .

Fig 11: Clamping Off Hose/Line Assembly Hose To Slave Cylinder With Hose Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull hose/line assembly clip -arrow- out as far as stop.

-- Remove pipe/hose line assembly from the slave cylinder ventilator.

Vehicles with Dual-Clutch Transmission:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1-.

-- Push the B+ terminal protector -3- back and disconnect the B+ wire from the starter solenoid switch.

-- Loosen the nut -arrow- and remove the ground wire.

NOTE:

Depending on the version the ground cable is attached to the starter bolt.

-- To discharge static electricity, touch a ground by hand (without gloves).

-- Do not touch connector terminals in the transmission connector with hands.

-- Disconnect the connector -2- for the Dual-Clutch Transmission Mechatronic -J743-, by turning the twist lock counter-clockwise.

-- Remove the selector lever cable from the transmission and pull it out of the cable bracket. Refer to the appropriate service information in SELECTOR MECHANISM, REMOVING AND INSTALLING .

Vehicles with Automatic Transmission:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the selector lever cable -1- off the selector lever -2-, for example, using an open end wrench.

-- Remove the connector -6- from the Multifunction Transmission Range Switch -F125- and free up the wire on the bracket.

-- Remove the bolts -5- from the cable bracket -4-. Do not remove the lock washer -3-.

-- Disengage the selector lever cable -1- from the clip -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Do not bend or kink the selector lever cable.

So that the cable is not damaged when removing and installing the transmission, secure the cable using for example a cable tie on a suitable location on the body.

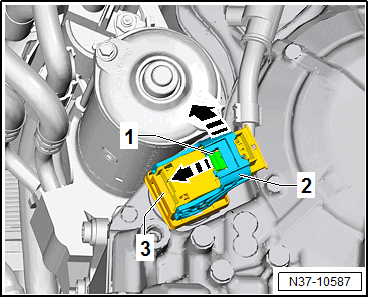

-- Remove the connector from the transmission as follows. Push the retainer -1- in the direction of the -arrow-, open the bracket -2- and then remove the connector -3- from the transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connections from the starter. Refer to STARTER, REMOVING AND INSTALLING .

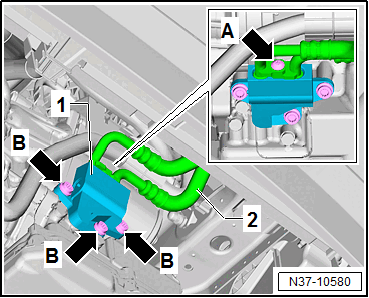

-- Remove the bolt -A- and remove the ATF lines -2- from the thermostat -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Ignore the bolts -B-.

Continuation for All:

Fig 12: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolts -arrows- for the transmission mount approximately two turns.

-- Loosen the bolts -arrows- for the engine mount approximately two turns.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

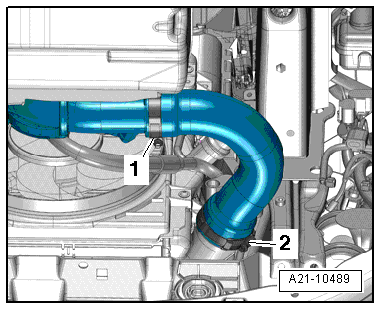

-- Loosen the hose clamp -1 and 2- and remove the right charge air hose.

Fig 13: Identifying Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Seal the open lines and connections with clean plugs from the :VAS6122 .

-- Free up the coolant hose -3-.

Fig 14: Disconnect Charge Air Pressure Sensor Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

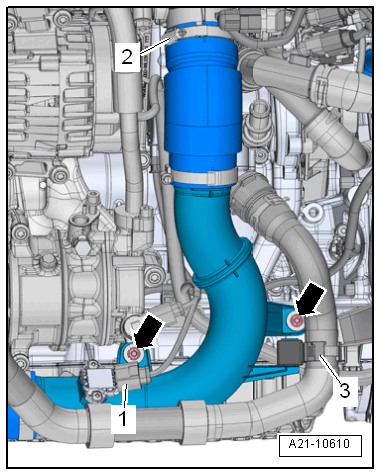

-- Remove the bolts -arrows-.

-- Loosen the hose clamp -2-.

-- Disconnect the connector -1- on the Charge Air Pressure Sensor -G31-.

-- Remove the air duct pipe.

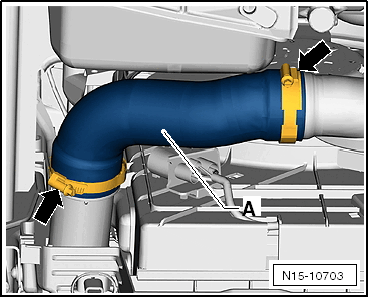

-- Loosen the hose clamps -arrow- on the charge air cooler and remove from the left charge air hose -A- from the charge air cooler.

Fig 15: Removing Change Air Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Before removing the ribbed belt, mark the running direction with chalk or a felt-tip pen for reinstallation.

Fig 16: Ribbed Belt For Vehicles With Electro-Mechanical Power Steering

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

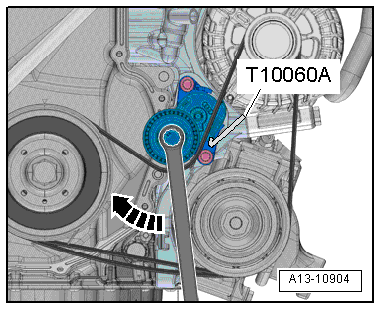

-- Pivot the tensioner clockwise in direction of -arrow- to release the tension on the ribbed belt.

-- Remove the ribbed belt from the A/C compressor ribbed belt pulley and release the tension on the tensioner. If necessary, remove the :T10060A .

Fig 17: Identifying A/C Compressor Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Danger of frostbite from refrigerant.

Do not open the A/C system refrigerant circuit.

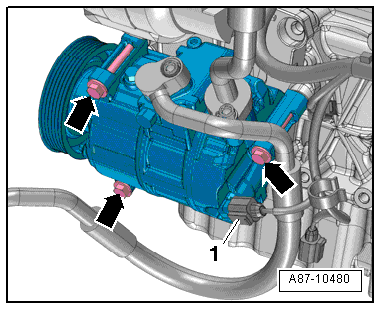

-- Disconnect the connector -1- from the A/C Compressor Regulator Valve -N280-.

-- Remove the screws -arrows-.

-- Remove the A/C compressor from the bracket with the refrigerant hoses attached and tie up to the right side. While doing so, do not bend, twist or stretch the refrigerant lines and hoses.

AWD Vehicles

-- Loosen the clamping sleeve -arrow- and push it toward the rear.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the catalytic converter with the front exhaust pipe.

-- Remove the bolts -A and B- on the bevel box and remove the heat shield -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

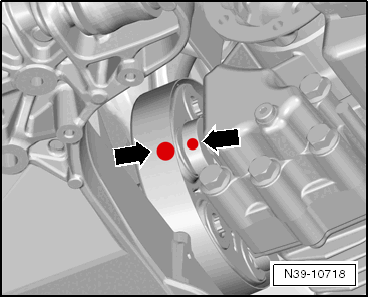

-- Mark the position of the driveshaft to the flange on the bevel box.

Fig 18: Mark Position Of Driveshaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To loosen or tighten, counterhold the driveshaft on the rear final drive.

Fig 19: Counterholding Rear Final Drive To Loosen And Tighten Driveshaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the driveshaft on the front bevel box -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

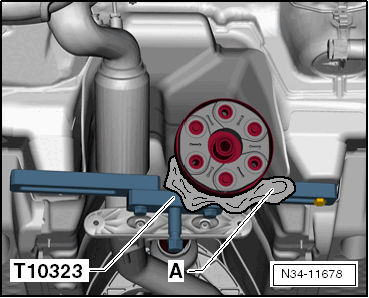

-- Secure the :T10323 with a bolt on the inner laying rear threaded hole for the subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- A subframe bolt is suitable for this.

-- Place a cloth -A- on the :T10323 .

-- Remove the driveshaft from the bevel box.

Continuation for All Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolt -arrow- and push the bracket for the wiring harness to the side.

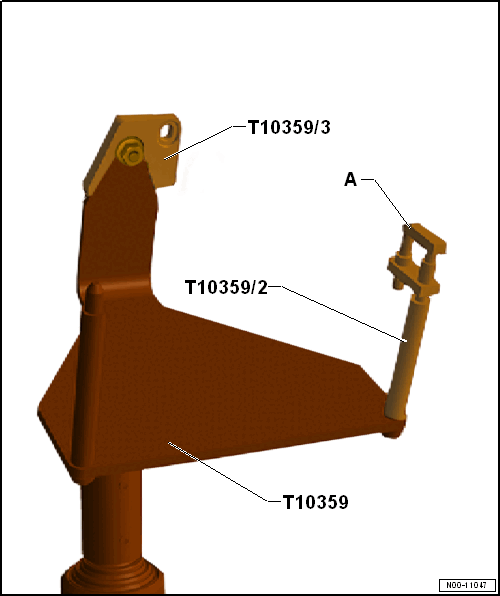

-- Install the :T10359/3 , as shown in the illustration, on the :T10359A .

Fig 20: Identifying Engine/Gearbox Jack Engine Support

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the Pin :T10359/2 onto the engine bracket with the securing element -A- from the :3282 .

-- Place the :T10359 in the :VAS6931 .

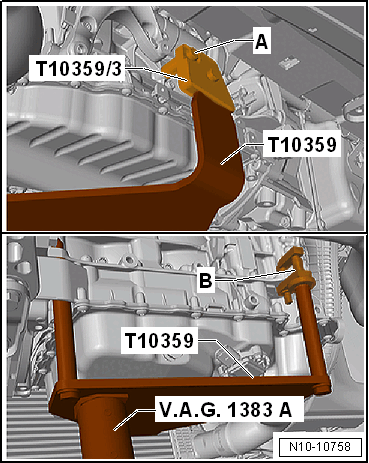

-- Install the :T10359 on the cylinder block. Install the bolt -A- with spacer sleeve on the cylinder block. Tightening specification 20 Nm.

Fig 21: Identifying Engine Support

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the engine with the support element -B- and lift the engine with the transmission.

-- Completely remove the engine mount bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Completely remove the transmission mount bolts -arrows- completely.

Fig 22: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

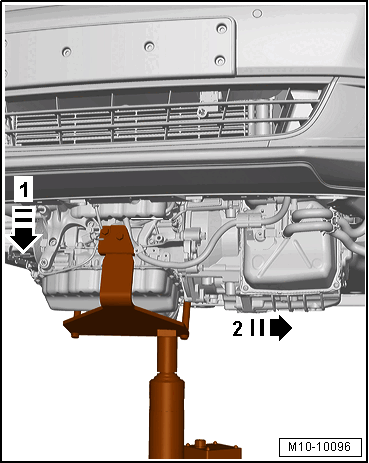

-- Carefully lower the engine/transmission assembly while doing so check is all vacuum lines or wires between the engine, transmission and body are separated.

Fig 23: Identifying Engine Jack

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
