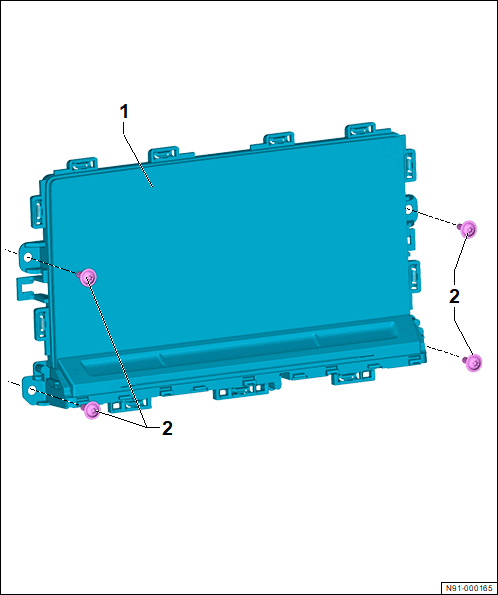

Overview - Front Information Display Control Head Control Module

GWWN91-000165Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Information Display Control Head -J685-
  2. Bolt
    • Quantity: 4
    • 1.5 Nm
