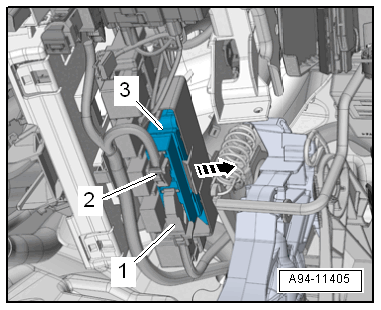

Remove the Parking Aid Control Module -J446-
-- Release and disconnect the connectors -1 and 2-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Release the retaining tab in the direction of -arrow-.
-- Remove the Parking Aid Control Module -J446- -3- downward from the bracket.
