Wiring Diagrams

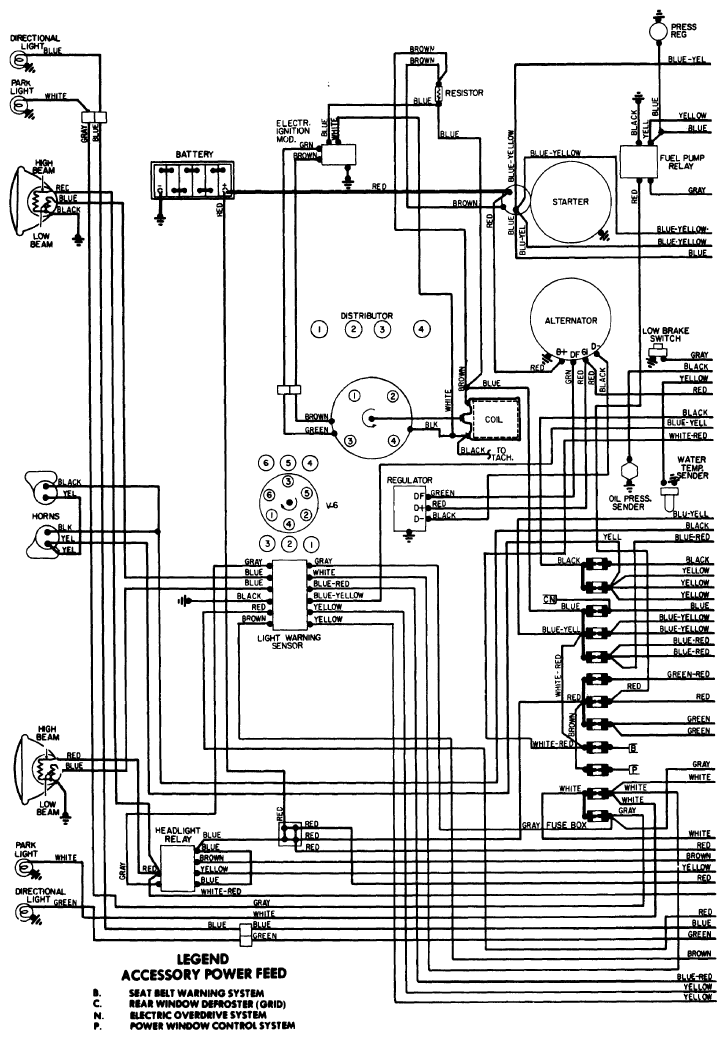

Fig 1: Wiring Diagrams - Volvo (1 of 2)
G09303027Courtesy of VOLVO CARS CORPORATION

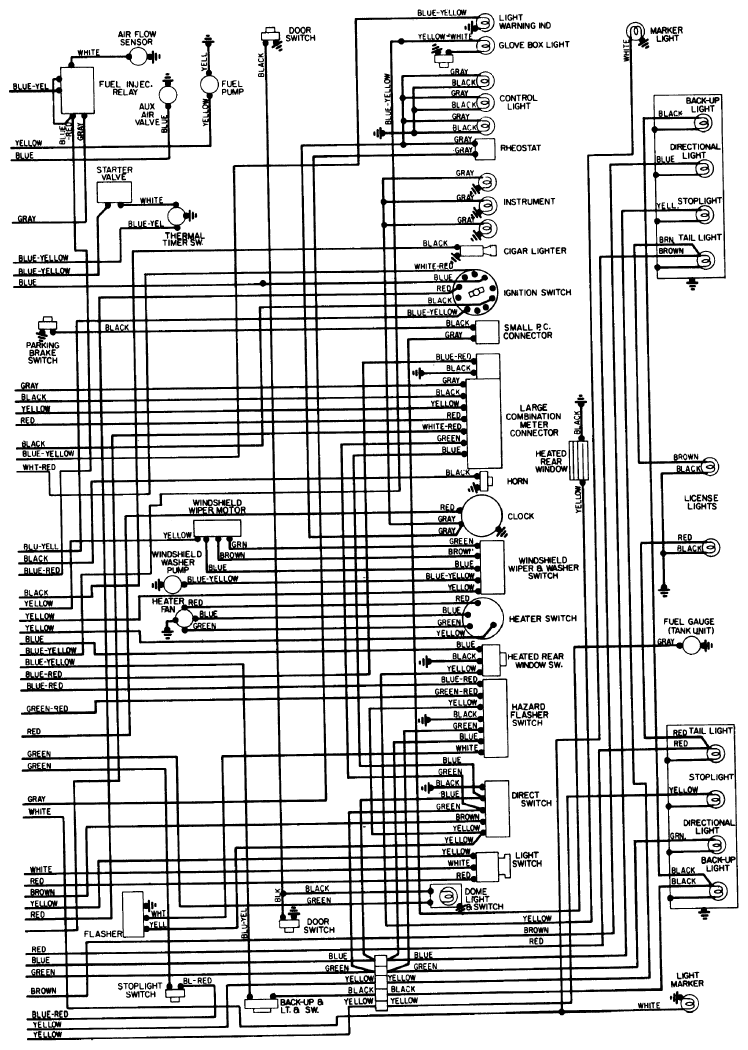

Fig 2: Wiring Diagrams - Volvo (2 of 2)
G09303028Courtesy of VOLVO CARS CORPORATION
