Instrument Panel

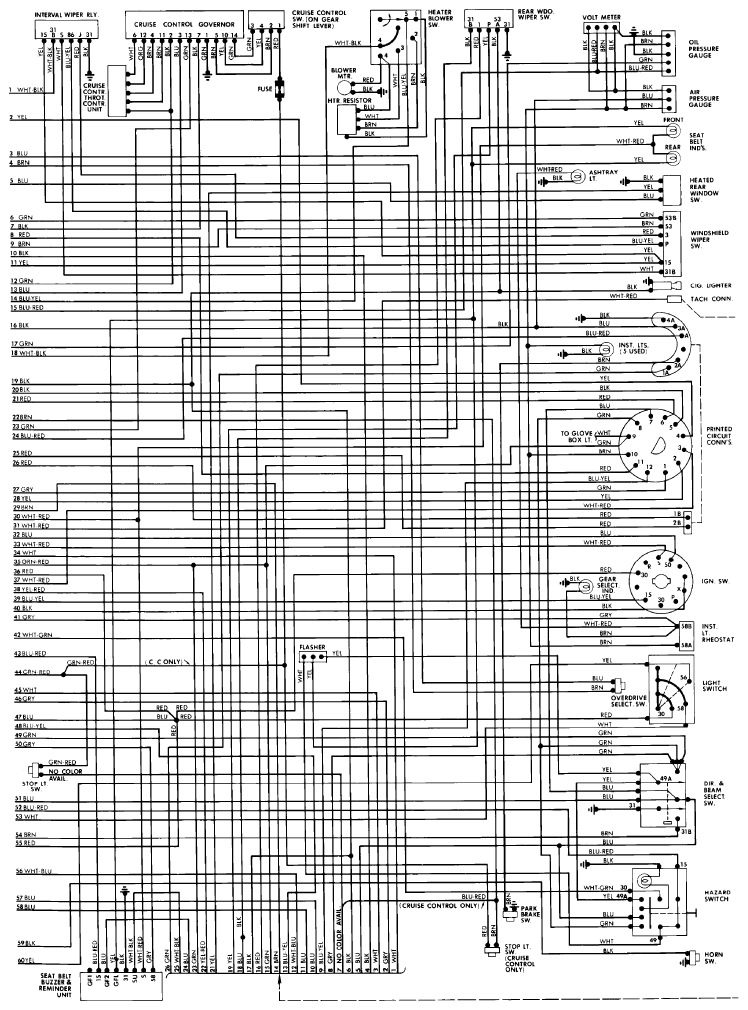

Fig 1: Wiring Diagram - GLE Bertone Diesel and DL GL GLT Turbo (3 of 4)
G09304348Courtesy of VOLVO CARS CORPORATION
