Power Seat Control Panel

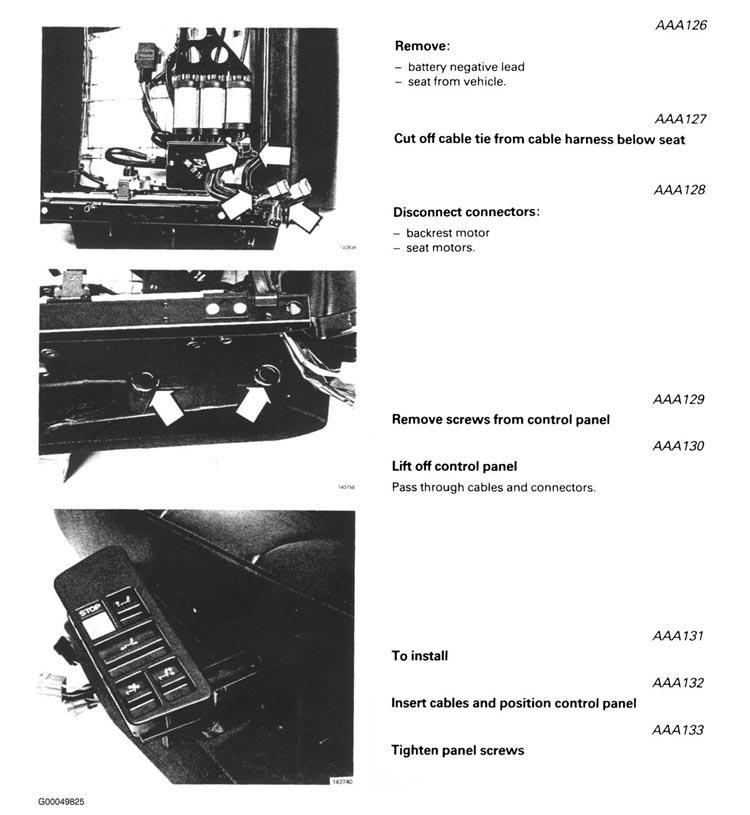

Fig 1: Removal & Installation Of Power Seat Control Panel AAA126-AAA133
Courtesy of VOLVO CARS OF NORTH AMERICA.

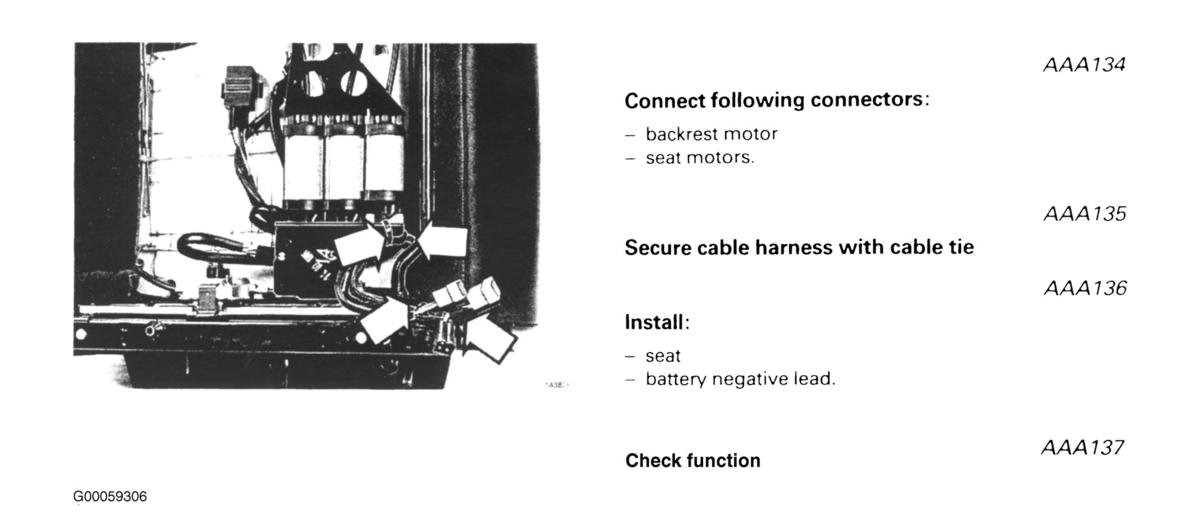

Fig 2: Removal & Installation Of Power Seat Control AAA134-AAA137
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
