Ignition System - Electronic: Wiring Diagram

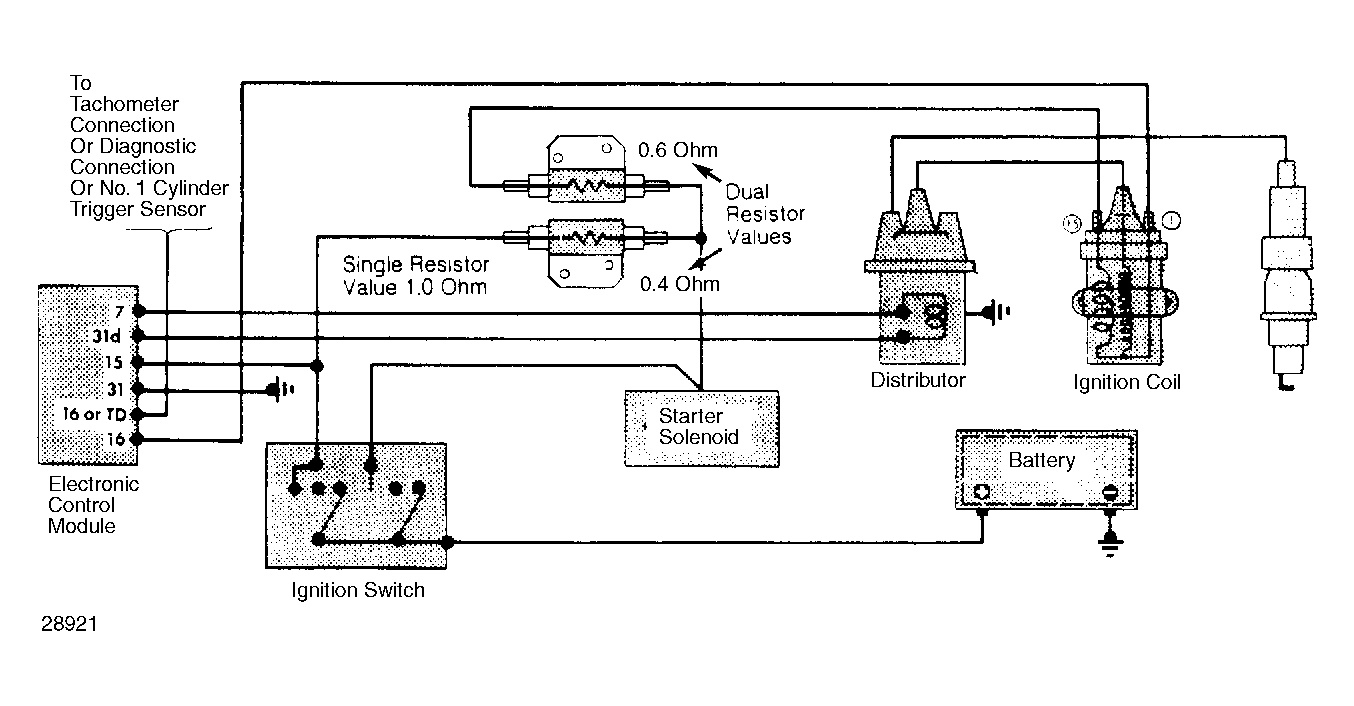

Fig 1: Wiring Diagram of Typical Bosch Electronic Ignition System

G28921
