New A/C Compressor Tools Descriptions (GROUP 00, NO. 103)

NEW A/C COMPRESSOR TOOLS DESCRIPTIONS

TECHNICAL SERVICE BULLETIN

NEW A/C COMPRESSOR TOOLS

Model(s): 1983-84 Volvo 242

1983-86 Volvo 244

1983-86 Volvo 245

1987-93 Volvo 240

1983-90 Volvo 760

1985-92 Volvo 740

1987-91 Volvo 780

1991-95 Volvo 940

1992-97 Volvo 960

Group: Special Tools Bulletin

Bulletin No.: 103

Date: April, 1997

REFERENCE

TP 8701201 Section 8 (87) Climate Control; 700/900 1982-On.

TP 31120/1 Section 8 (82-88) Body Fittings, Interior, Heating and A/C; 200 1975-On.

200 Service Bulletin Section 8, Group 87, No. 214 dated March, 1997.

900 Service Bulletin Section 8, Group 87, No. 933 dated March, 1997.

900 Service Bulletin Section 8, Group 87, No. 949 dated March, 1997.

SERVICE INFORMATION

New tools have been developed for removing and installing A/C compressor pulleys and clutches. The tools work with the most common A/C compressors, are designed to allow the magnetic clutch or pulley to be replaced without removing the compressor from the car. The tools will save time because the system does not need to be evacuated for this type of operation.

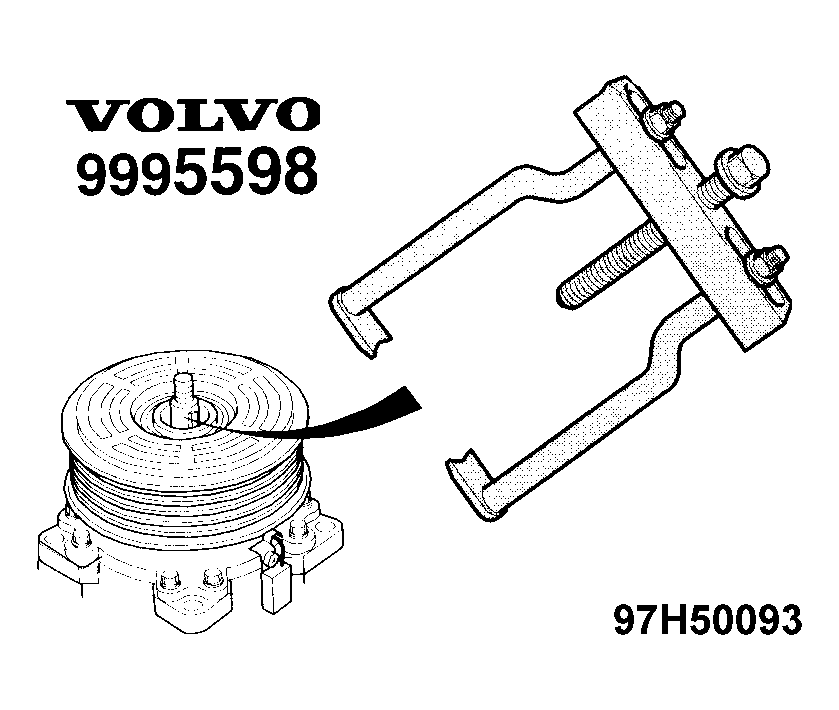

9995591 A/C COMPRESSOR PULLER

For removing and installing A/C compressor pulley and clutch. The puller is used together with the sockets/press tools listed below:

Board: 28-1 (Part No.9999838-7)

Position: N 15

Hook: 81

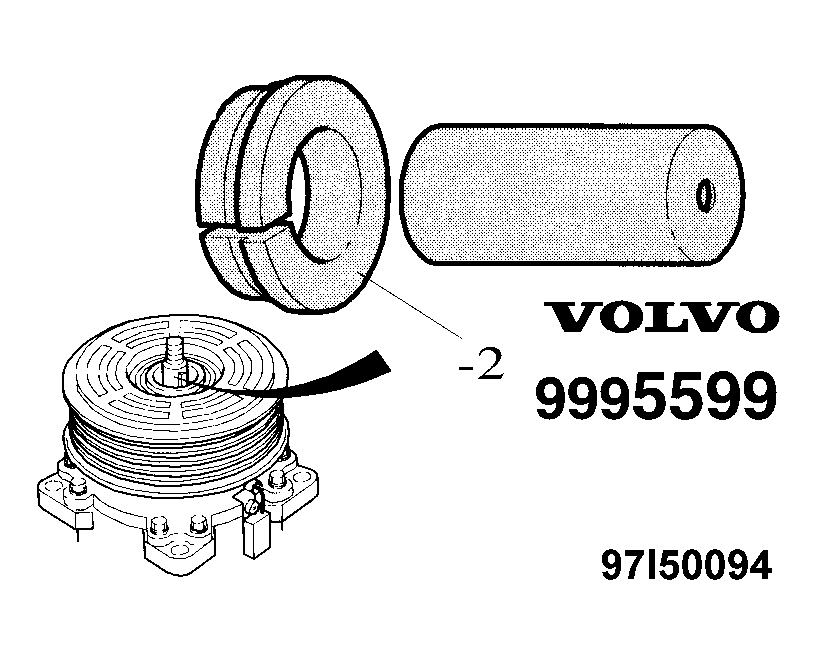

9995599 SOCKET

For removing pulley. Used with puller 9995598-1.

Board: 28-1

Position: N 15

Hook: 81

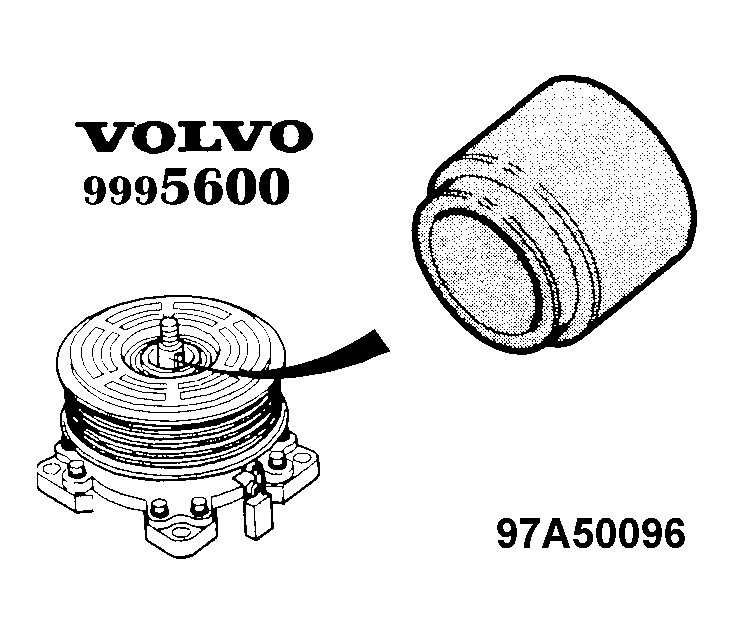

9995600-5 SOCKET

For installing pulley. Used with puller 9995598-1.

Board: 28-1

Position R 16

Hook: 80

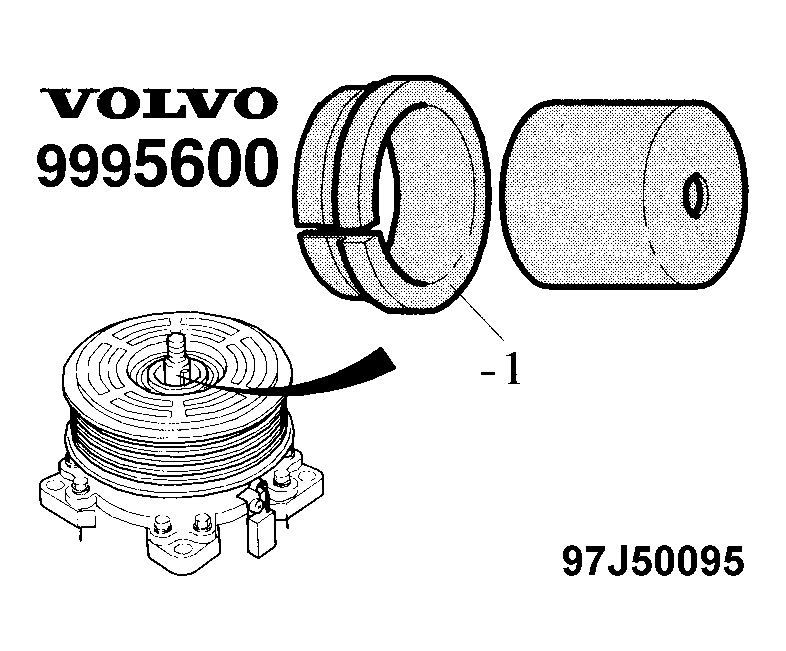

9995601-3 SOCKET

For installing magnetic clutch. Used with puller 9995598-1.

Board: 28-1

Position: O 13

Hook: 50

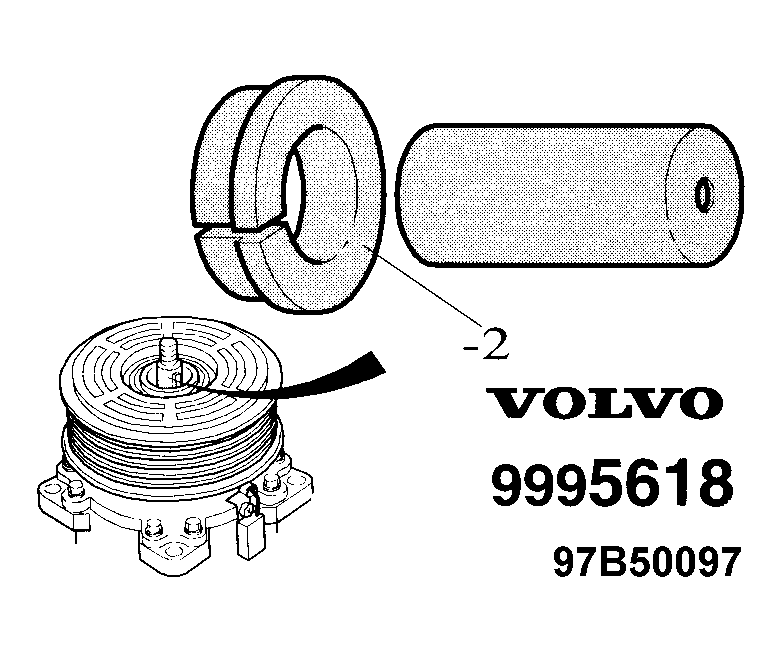

9995618-7 SOCKET

For removing pulley. Used with puller 9995598-1.

Board: 28-1

Position: N 18

Hook: 81

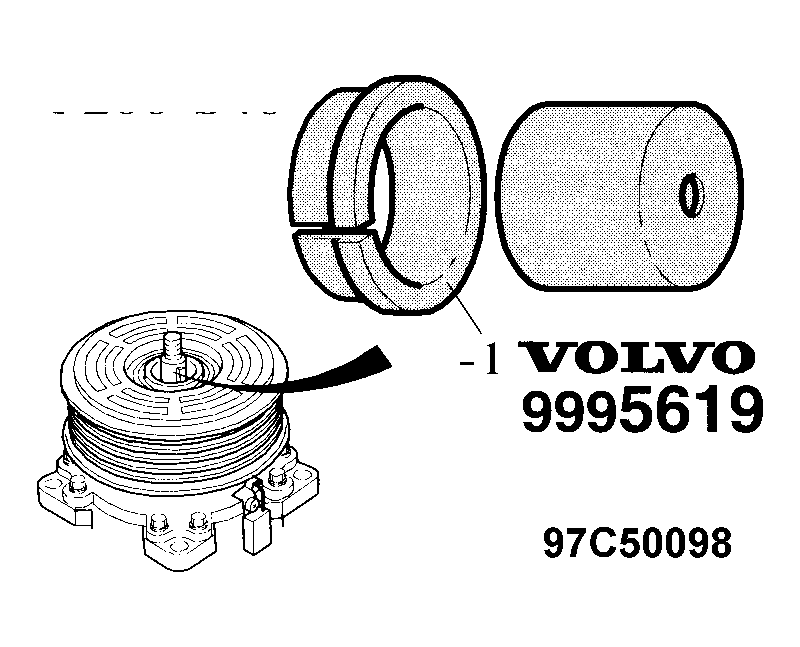

9995619-5 SOCKET

For installing pulley. Used with puller 9995598-1.

Board: 28-1

Position: R 19

Hook: 80

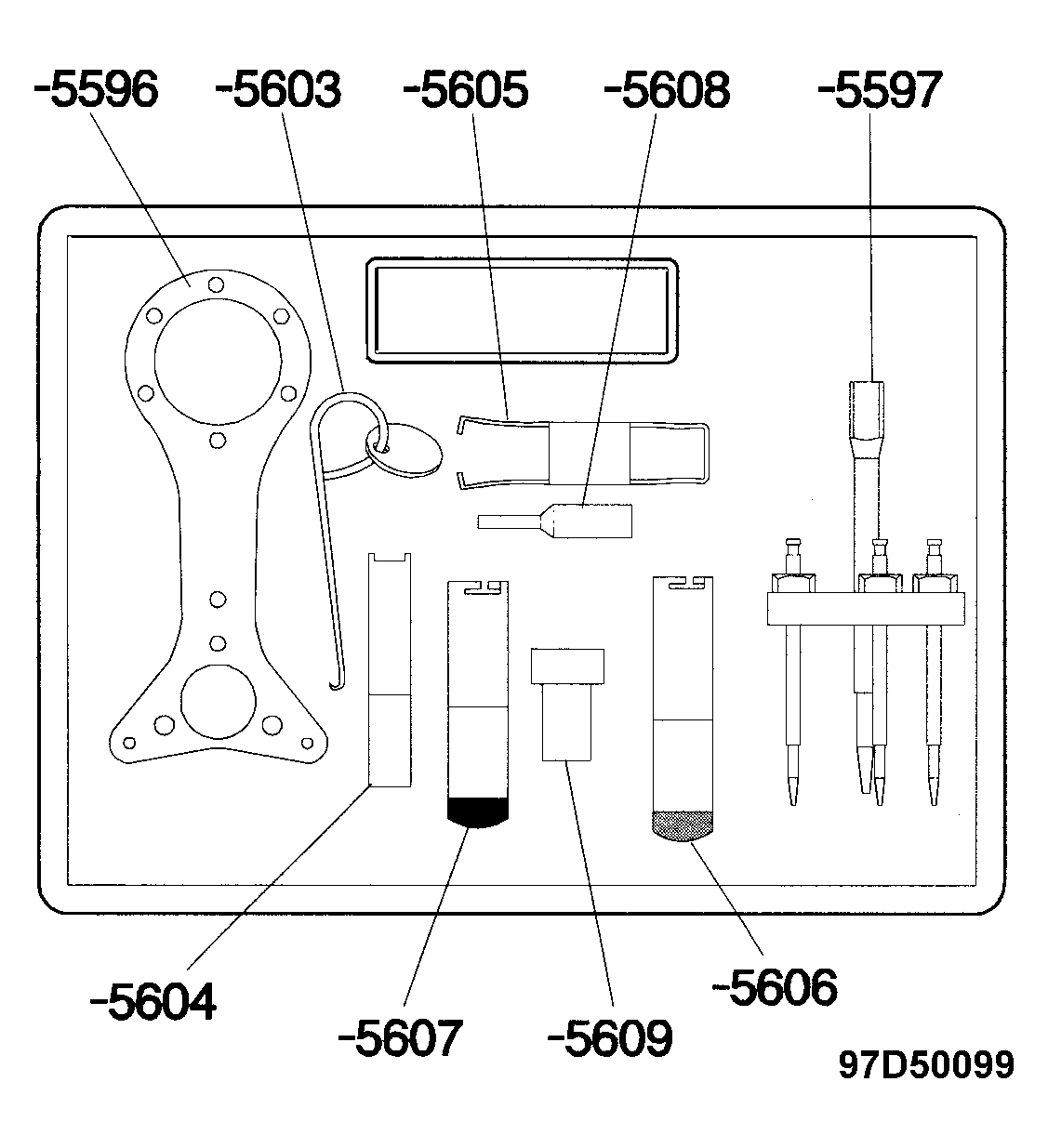

9995602-4 COMPRESSOR SEAL TOOL KIT

This tool kit is for replacement of the shaft seals on Sanden SD 508-510/709 compressors. If the shaft seal leaks, it must be replaced. If the climate control unit is retrofitted from R12 to R134A, the shaft seal must be replaced with a 134A seal. The tools are designed to minimize leakage and the assurance that the shaft seal can be effectively and quickly replaced without damaging sensitive components and contact surfaces. The kit is packed in a plastic case and contains the following tools:

PARTS INFORMATION

Part Number	Description	Compressor
9995596-5	Counterhold	All (2)
9995597-3	Puller	All (2)
9995603-9	Hook	All (2)
9995604-7	Drift	SD 709 (1)
9995605-5	Holder	SD 508/510 (1)
9995606-2	Drift	SD 709 (1)
9995607-0	Drift	SD 508/510 (1)
9995608-8	Shaft Protection	All (2)
9995609-6	Sleeve	All (2)
(1) SD = Sanden (2) All = SD 508-10/709

Board: 28-1

Position: S 8, 10

Hook: 23 (Included in tool kit)
