REPLACEMENT OF FRONT ECC CONTROL MODULE PANEL

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 87, NO. 820, Date of Issue: February, 1995

ECC CONTROL MODULE, REPLACEMENT OF FRONT PANEL

Model(s): 1993-95 Volvo 850

Section: 8 - Body

Group: 87

Bulletin No.: 820

Date: February, 1995

REFERENCE

TP 31861/2, SECTION 8 (87), CLIMATE CONTROL 850 1992-

SERVICE INFORMATION

To avoid having to change the entire ECC control module due to damage to the front panel this part will now be available separately.

The front panel has P/N 9134986-0 for degrees Centigrade and 9134987-8 for Fahrenheit calibration.

The slide control knob for the blower fan must also be replaced when installing a new front panel. The slide control knob has

P/N 3522627-3.

This service bulletin describes the method for replacing the front panel.

In order to replace the front panel, the control module must be removed from the car. The method for this operation is described in the Service Manual Section 8 (87) Climate control 850 1992- TP 31861/2 Section BD, Connecting and disconnecting Test box.

SERVICE PROCEDURE

ECC control module. replacement on front panel

Remove knob on slide control for blower fan (pulls off, can be discarded). See Fig 1 /

Remove the small light conductor behind the knob (pulls off, to be reinstalled after installing new front panel).

Fig 1: Removing Slide Control Knob

Remove:

* tape over control module. See Fig 2 .

* anti-squeak shield over control module.

Fig 2: Removing tape from Control Module

Apply tape to the control knobs to protect them from damage when using plier.

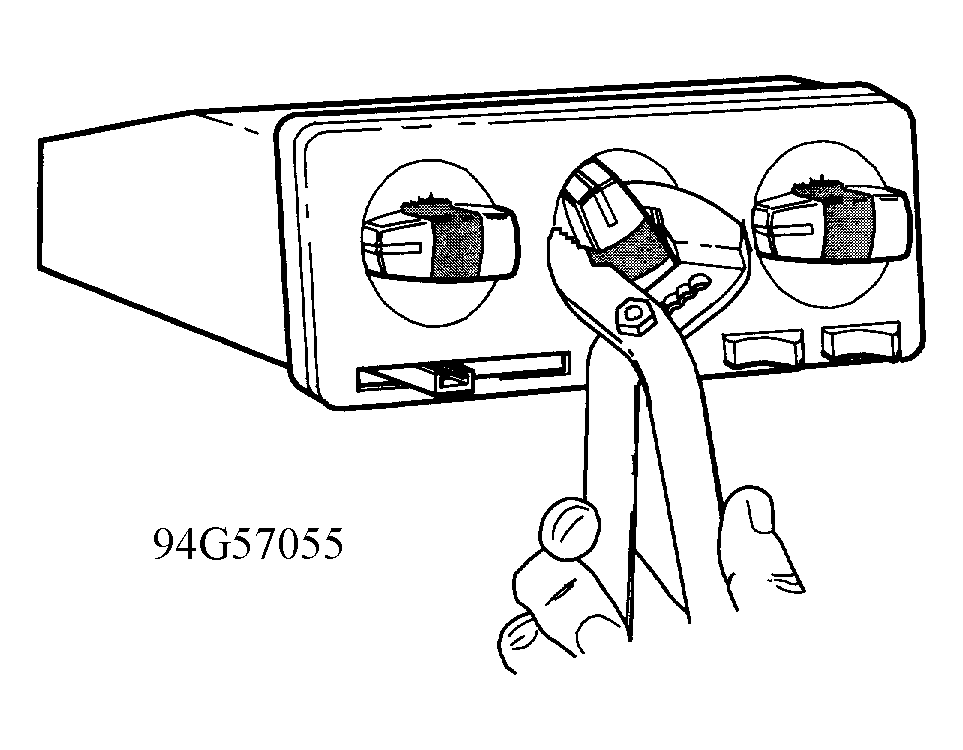

Carefully pull off control knobs with a pair of pliers. See Fig 3 .

Fig 3: Removing Control Knobs

Remove three screws retaining the front panel. See Fig 4 .

Fig 4: Removing Retaining Screws on Front Panel

Remove four screws retaining the front section. See Fig 5 .

Fig 5: Removing Retaining Screws on Front Section

Pull out front section.

Remove remaining two screws retaining the front panel to the front section. See Fig 6 .

Fig 6: Removing Remaining Retaining Screws

Remove front panel.

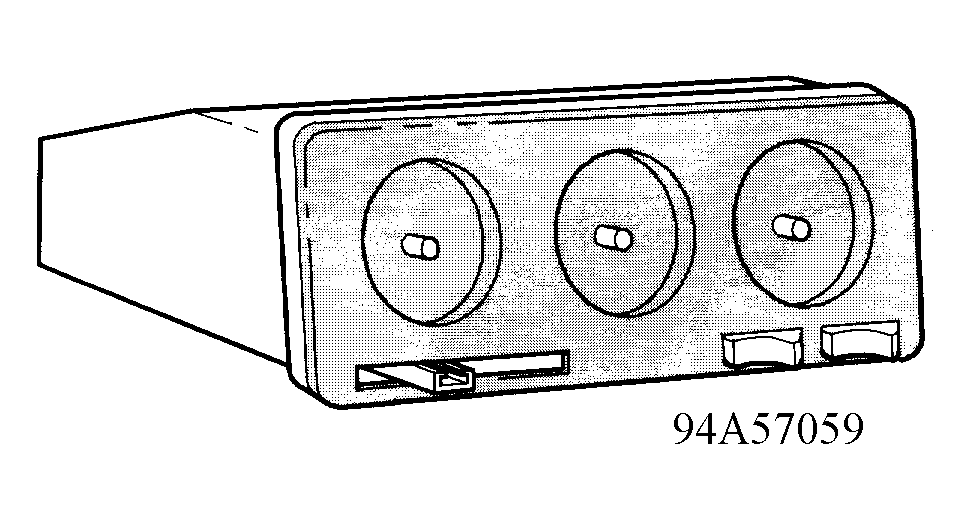

Install new front panel. See Fig 7 .

Fig 7: Installing New Front Panel

Reinstall front section, anti-squeak shield, tape, light conductor and controls on the control module.

NOTE: The knob on the blower fan control slide should be a new one, (P/N 3522627-3).

Remove tape on knobs.

Reinstall control module in car.

Verify functions

WARRANTY STATEMENT

Claims may be submitted under the New Car Limited

Warranty when a manufacturing defect is present using claim type: 01

WARRANTY STATEMENT

Operation No. QW90	Labor Description	Time Allowance
87155-2	ECC front panel, replace	0.4 hr
