Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

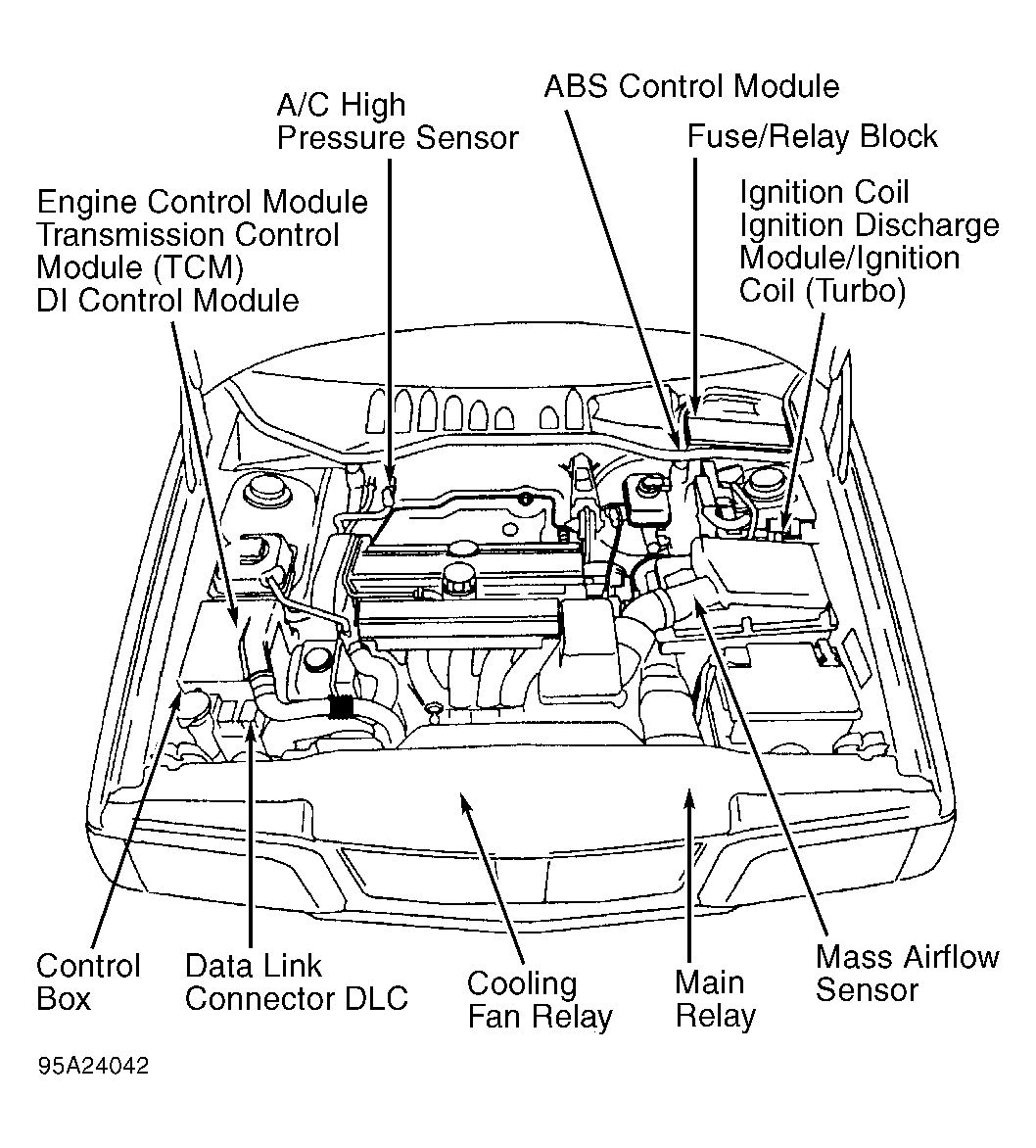

Fuse/Relay Block (Location) On left rear of engine compartment. See Figure .

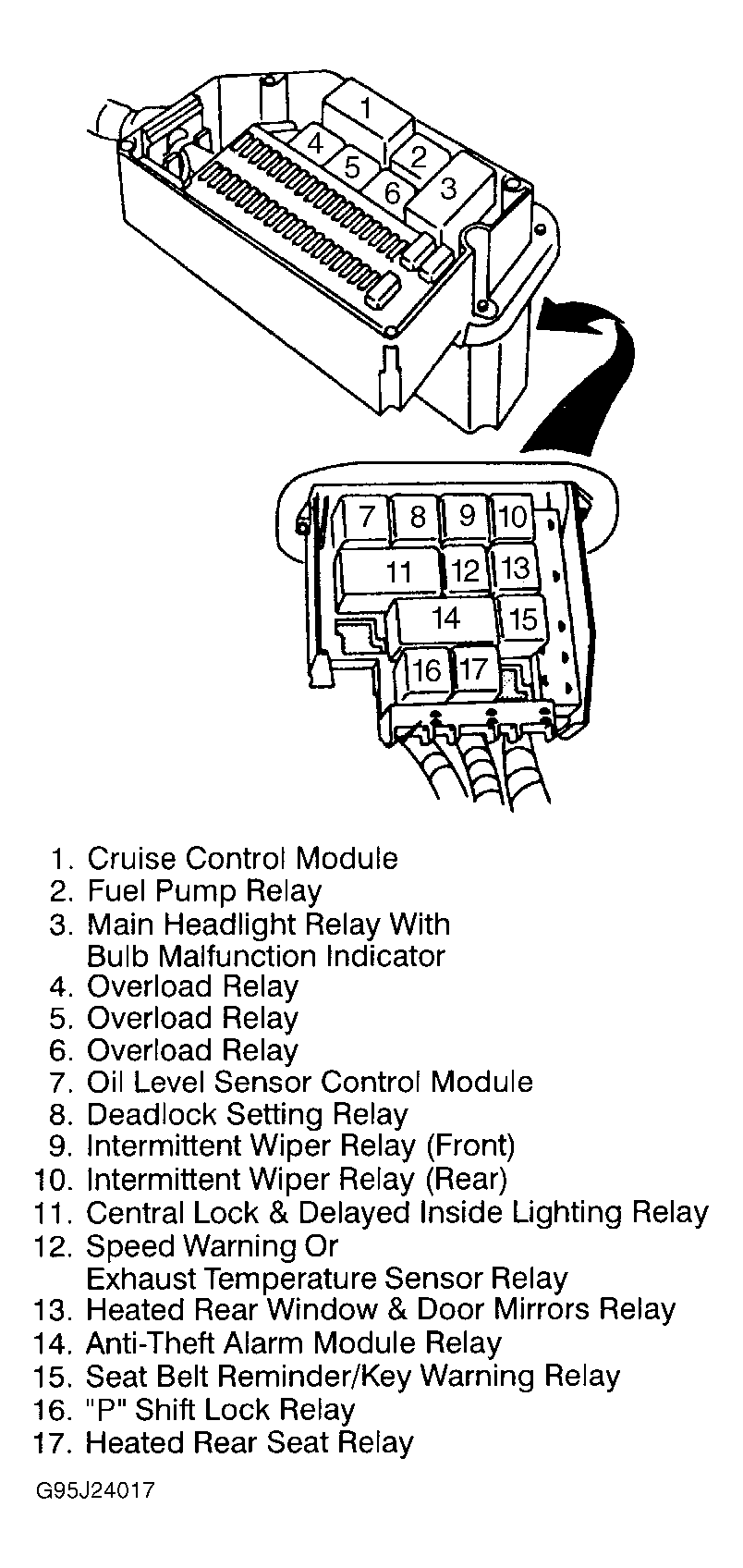

Fuse/Relay Block (View) On left rear of engine compartment. See Figure .
