Power Seat Control Module: Service and Repair

Control module, replace





Remove:
- Deactivate the mechanical belt tensioner. Deactivating/Activating the Mechanical Belt Tensioner
- Battery negative cable
- Seat from car. Complete Seat, Replace

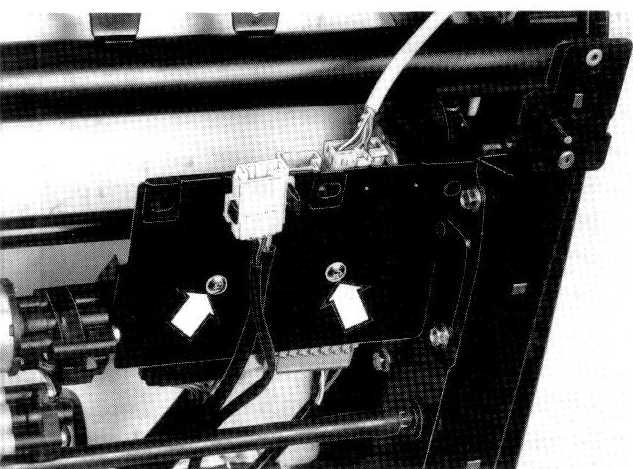

- The two screws from the bracket.
- The connectors from the control module.


Install:
In reverse order.

- Activate the belt tensioner. Deactivating/Activating the Mechanical Belt Tensioner
