Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Fuse/Relay Block

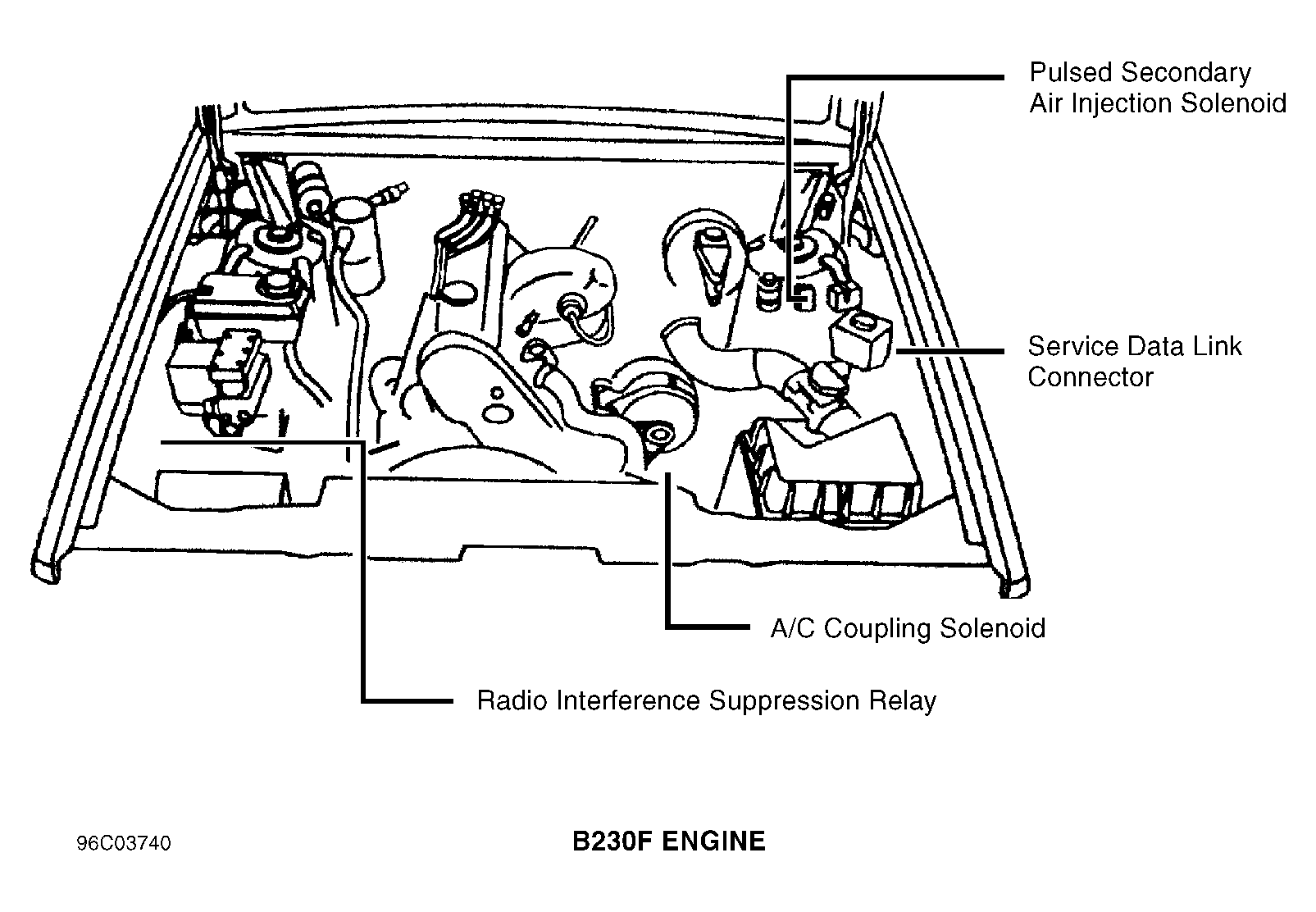

Fig 2: Engine Compartment (B230F)

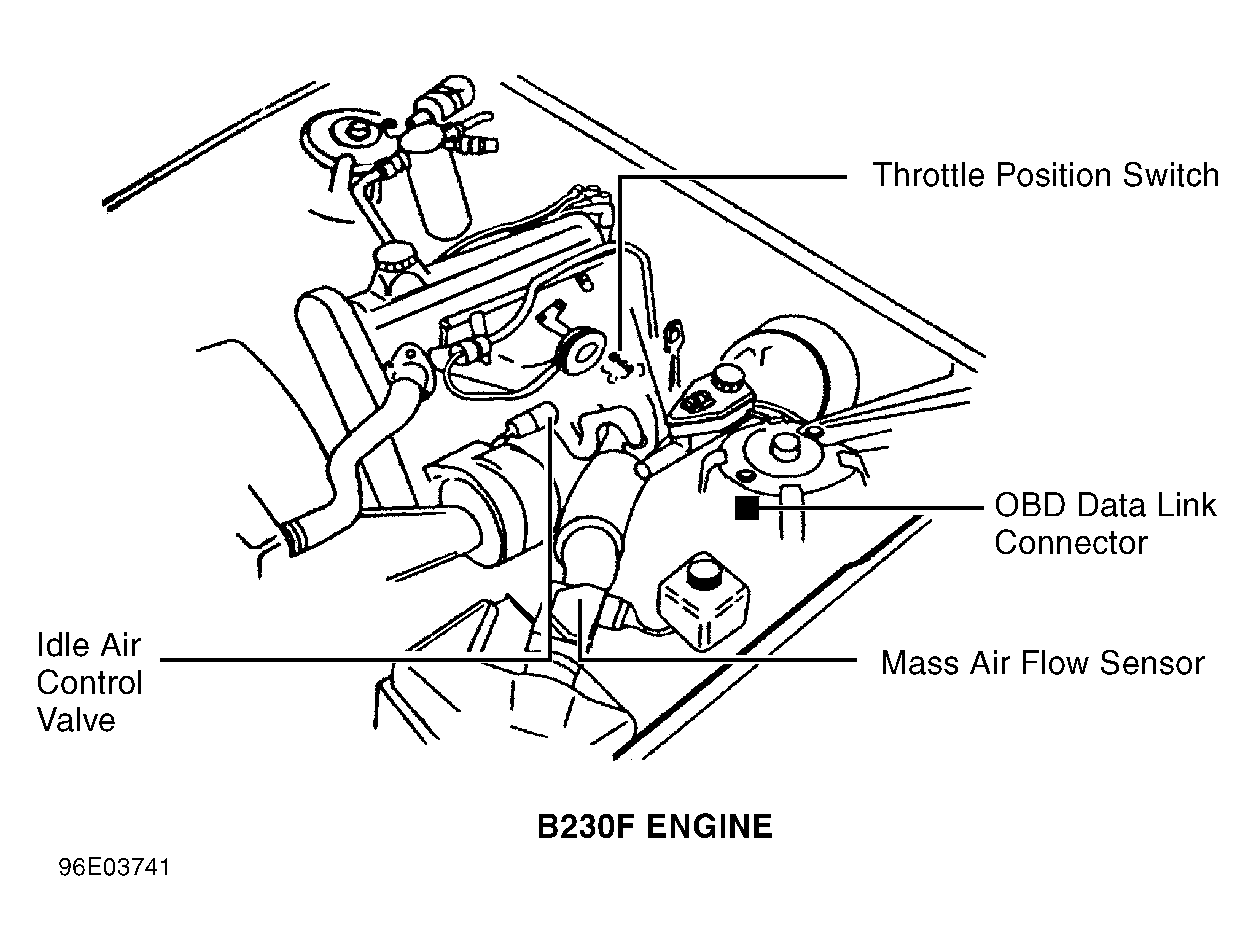

Fig 3: Engine Compartment (B230F)

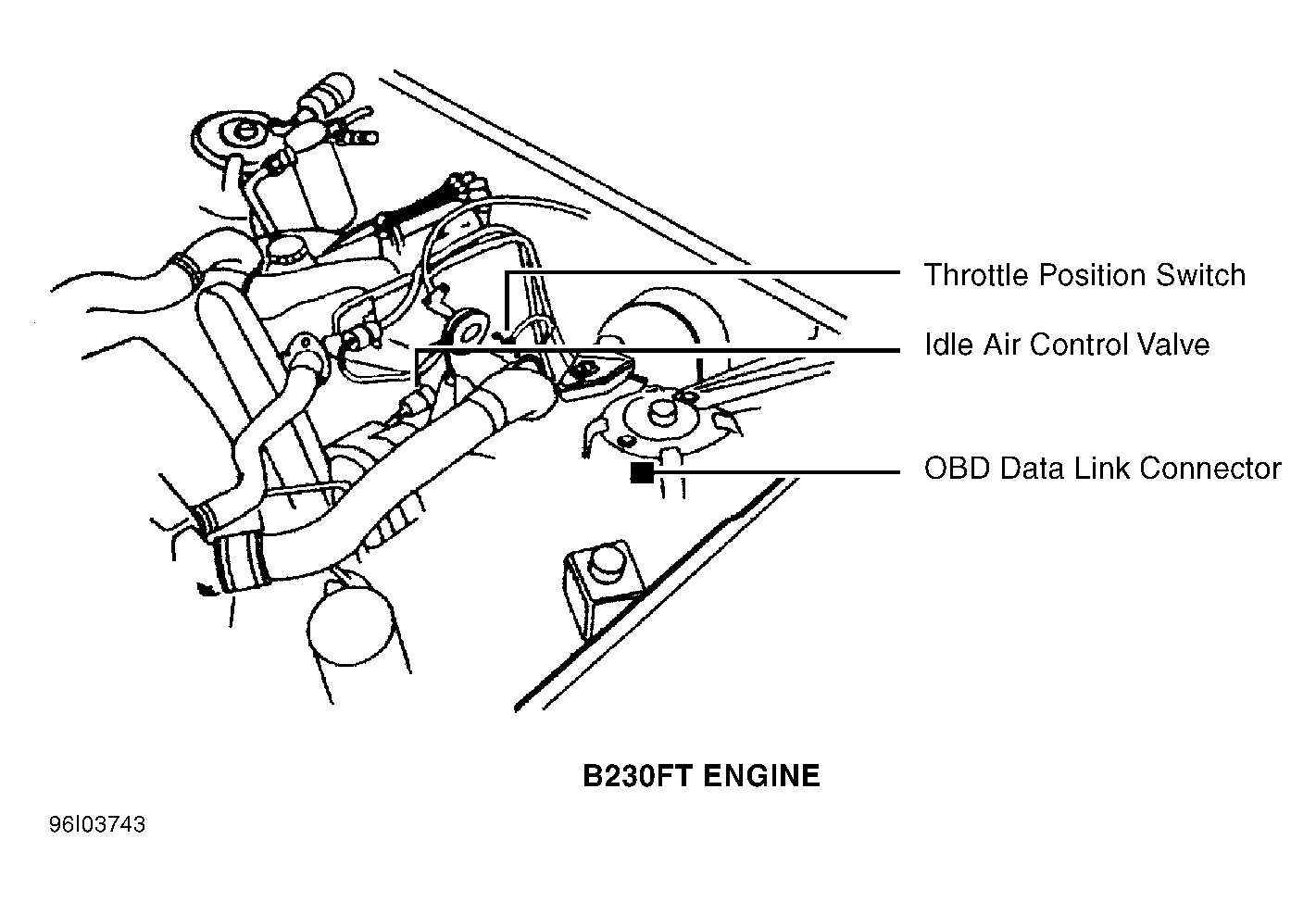

Fig 4: Engine Compartment (B230FT)

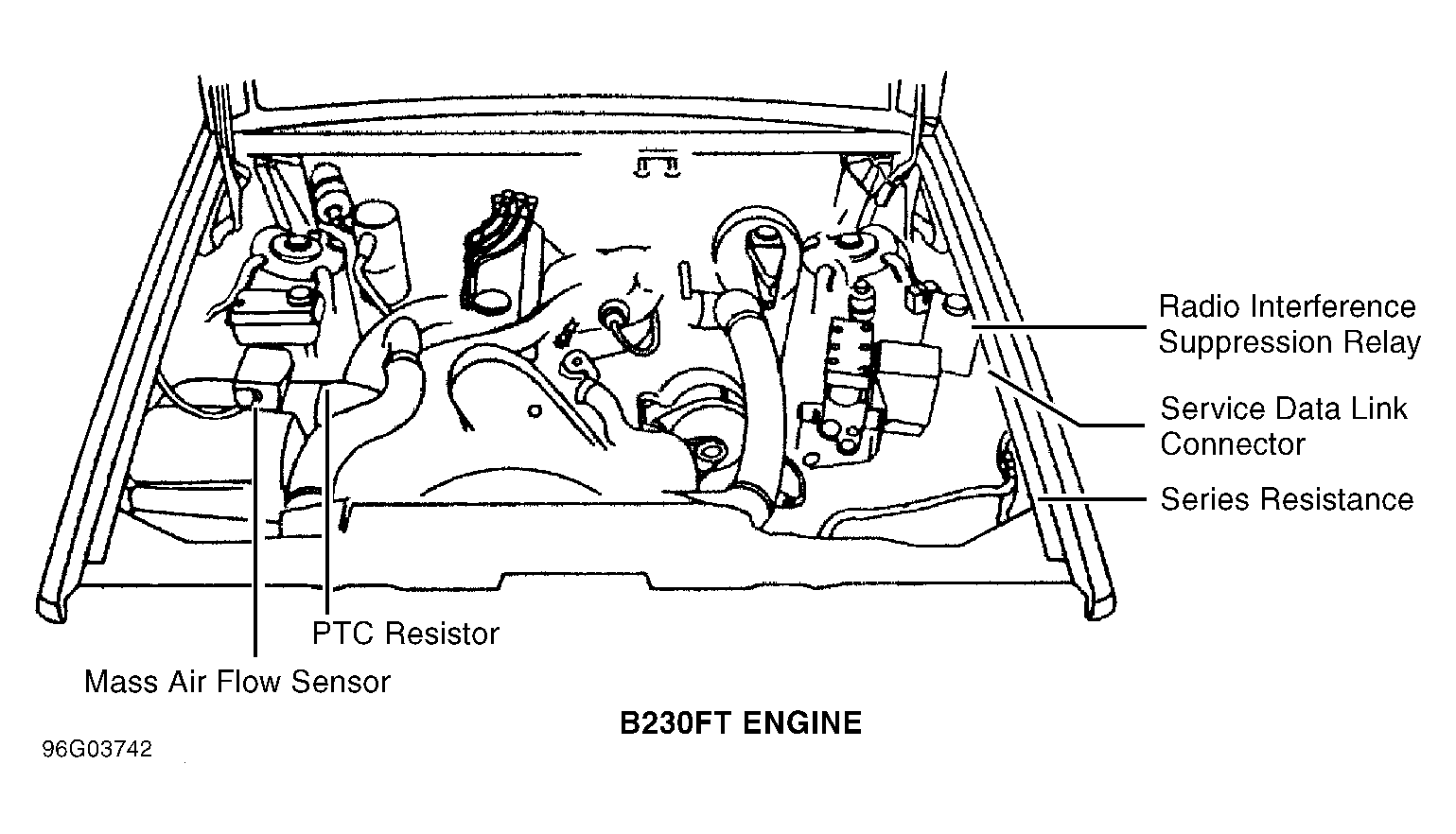

Fig 5: Engine Compartment (B230FT)
