Seat controls: Functions

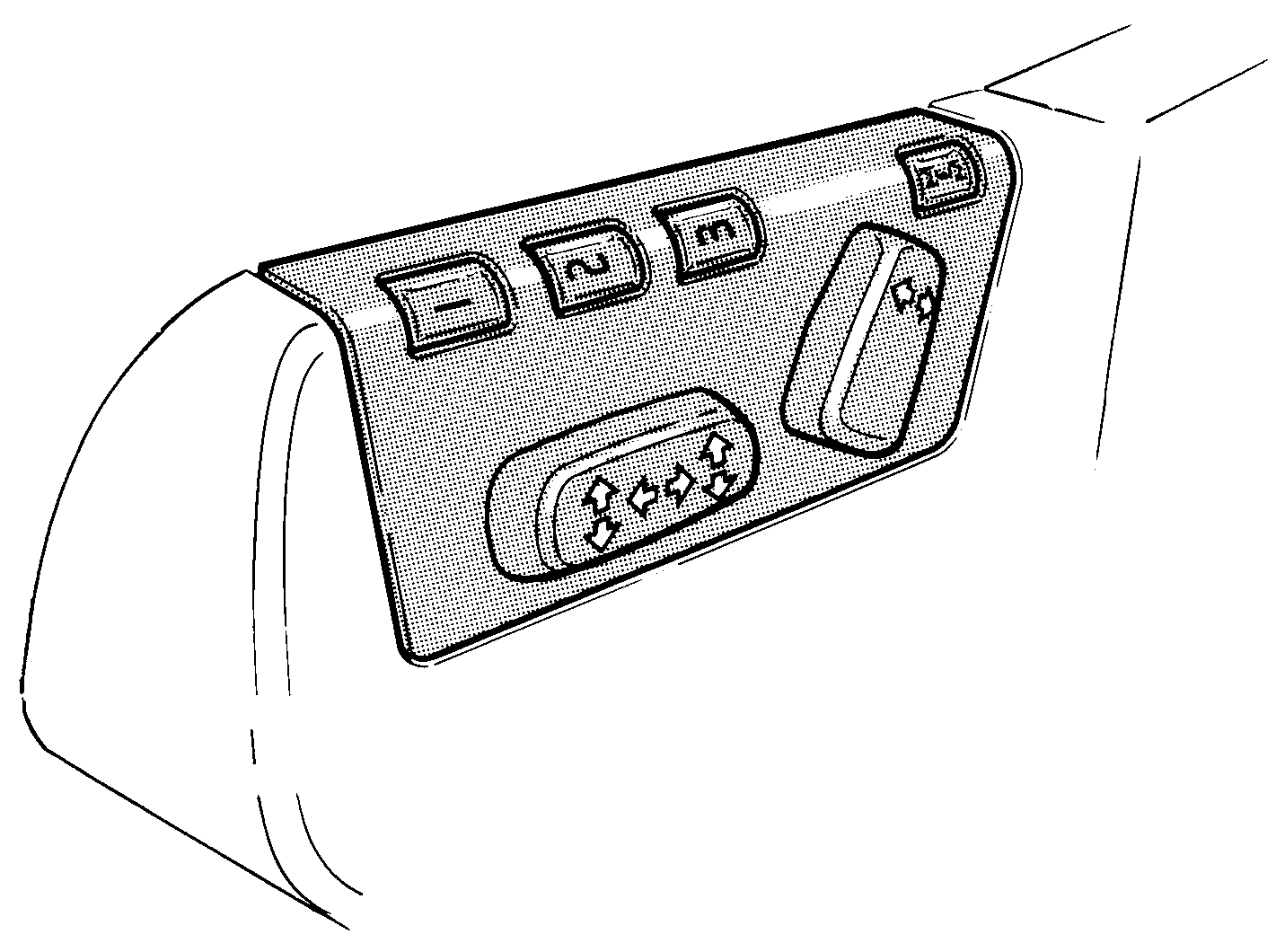

Fig 1: Identifying Power Seat Buttons

Courtesy of VOLVO CARS OF NORTH AMERICA.

• The control shaped like a seat squab controls the seat height at the front and rear and moves the seat backward and forward.
• The control shaped like a backrest controls the backrest angle. The lumbar support is adjusted manually.
• The three memory buttons, which are marked 1  , 2  and 3  are used to store and recall seat adjustment settings. To move the seat into a pre-set and stored position, hold a memory button down until the seat has reached that position. If the button is released while the seat is moving to the stored position it will stop moving immediately.

To store a seat position:

• Operate the power seat controls until the seat is in the position required.
• Then press the programming button, marked MEM  and keep it pressed in.
• At the same time press one of the memory buttons and the seat position is now stored in the control module memory.
