Service clips, installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volvo S60, 2008 Volvo S60, 2007 Volvo S60, 2006 Volvo S60, and 2005 Volvo S60. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

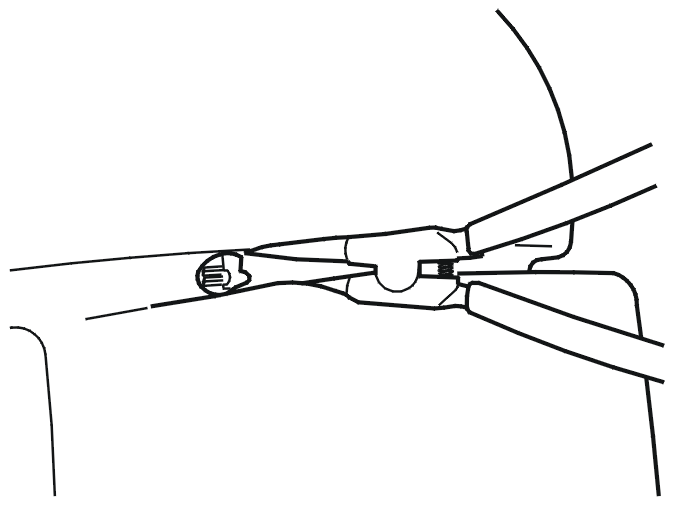

Fig 1: Installing Service Clip (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold apart the foam rubber slightly on one side of the clip.

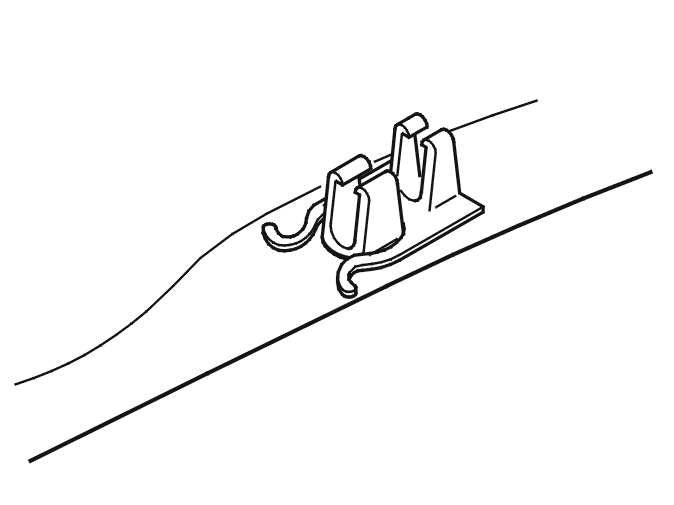

Fig 2: Installing Service Clip (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the service clip and press it into place under the flange on the old clip.

Check that it is fitted in line with the old clip and that it ends up in position.

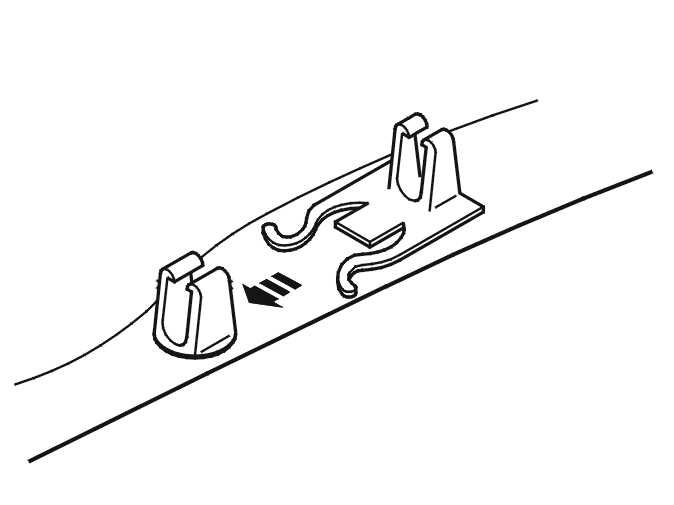

Fig 3: Installing Service Clip (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold back the foam rubber.
