Powertrain Management: Locations






Location of components, engine compartment

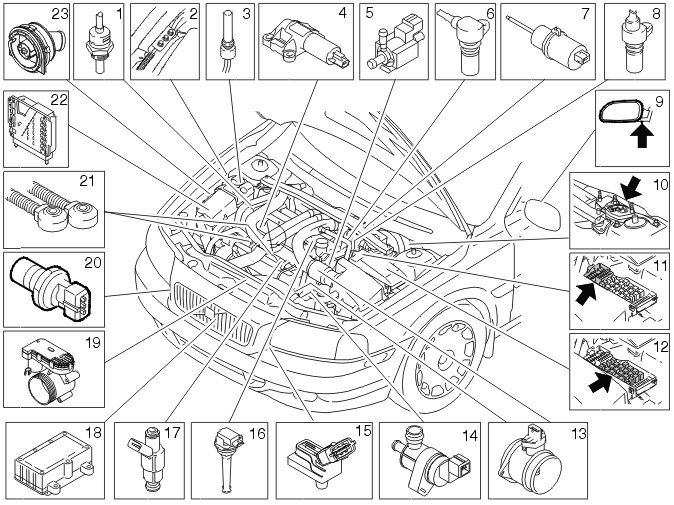

Location of Components, Engine Compartment (Part 1):





Note! For S60/V70 2004- B5254T2 AW55-50SN US market, see Location of components, engine compartment, B5254T2 Locations.

Not all the following components are necessarily in the car. The components vary between engine types.

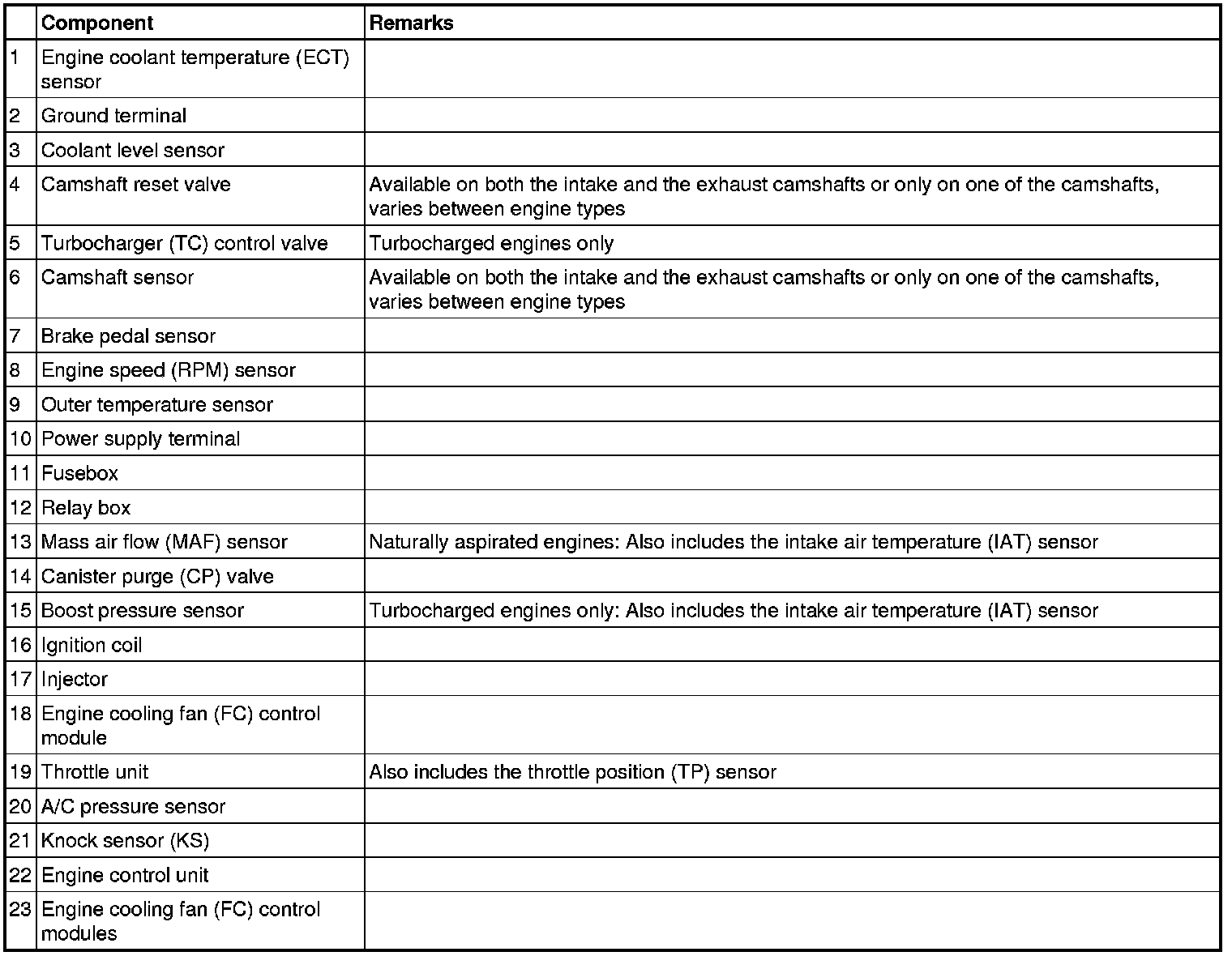

Location of Components, Engine Compartment (Part 2):
